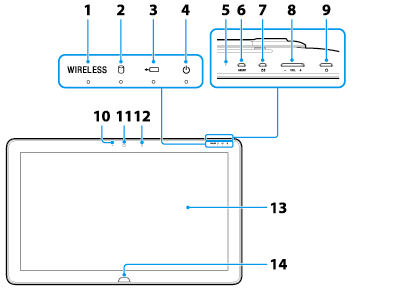

Parts and Controls on the Front

Describes the features on the front of the VAIO computer, such as buttons and indicator lights.

  1. WIRELESS indicator [Details]

  1. Disc drive indicator

  1. Charge indicator [Details]

  1. Power indicator [Details]

  1. Built-in microphone (monaural)

  1. ASSIST button [Details]

  1. Rotation lock button

Press to lock the screen to prevent it from rotating when you turn your VAIO computer. Press again to release the lock.

  1. VOL (Volume) buttons

  1. Power button [Details]

  1. Built-in camera indicator [Details]

  1. Built-in camera [Details]

  1. Ambient light sensor [Details]

  1. Touch screen [Details]

  1. Windows button [Details]

Notes on the LCD screen

The LCD screen is manufactured using high-precision technology. You may, however, see tiny black points and/or bright points (red, blue, or green) that continuously appear on the LCD screen. The ratio of defective pixels to all available pixels of the LCD screen is less than 0.0006 %. Also, depending on the viewing angle, uneven stripes of changes in color and luminance may appear. These are normal results of the LCD screen construction and do not indicate a malfunction. Take note that returns and replacements are not accepted.
