Parts and Controls on the Sides

Describes the features on the sides of the VAIO computer, such as connection ports.

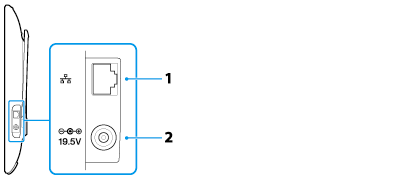

Right side

  1. LAN port [Details]

Do not connect the AC adaptor to the LAN port. It may cause a malfunction.

  1. DC IN port [Details]

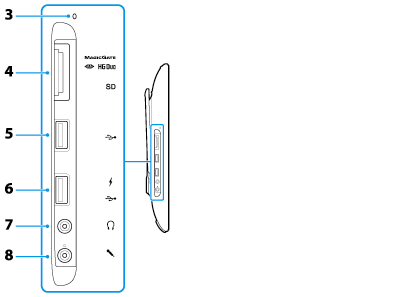

Left side

  1. Media access indicator (“Memory Stick Duo” [Details], SD memory card [Details])

  1. “Memory Stick Duo” / SD memory card combined slot (“Memory Stick Duo” [Details], SD memory card [Details])

“Memory Stick Duo” and an SD memory card cannot be inserted into the slot simultaneously.

  1. USB port [Details]

  1. USB port [Details]

This USB port supports USB charging. [Details]

  1. Headphones jack [Details]

  1. Microphone jack [Details]

Related Topic
Parts and Controls on the Front
Parts and Controls on the Back
