VAIO User Guide SVL2411 Series

Task

Connecting a USB Device

You can connect a Universal Serial Bus (USB) device such as a mouse, floppy disk drive, speaker or printer to your VAIO computer. Installation of the device driver software supplied with the USB device may be required when connecting. Refer to the manual that came with the device for more information.

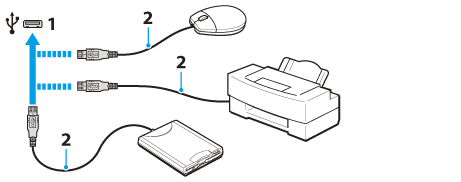

  1. Choose the USB port (1) you prefer to use.

  1. Plug the USB device cable (2) (not supplied) into the USB port.

Note
  • You may need to install the driver software supplied with your USB device before use. Refer to the manual that came with the USB device for more information.

  • In order to print documents, be sure the USB printer is compatible with your version of Windows.

  • Before disconnecting USB speakers from your VAIO computer, stop DVD or music playback or turn off the computer. If you disconnect the USB speakers during playback, it may cause a malfunction.
    For information on how to remove a USB device, refer to the manual that came with the device.

  • To protect your VAIO computer and/or USB devices from damage, observe the following:

  • When moving your VAIO computer with USB devices connected, avoid exposing the USB ports to shock or impact.

  • Do not put your VAIO computer in a bag or carrying case with USB devices connected.

Hint
  • The USB ports on your VAIO computer are compliant with the USB 2.0 standard and USB 3.0 standard. USB ports that are compliant with the USB 3.0 standard are identifiable by their blue color.

  • In addition to the USB 2.0 standard transfer modes, the USB 3.0 standard specifies the following transfer mode:

  • SuperSpeed: Transfer rate of 5 Gbps.
