VAIO User Guide VPCEG2/VPCEH2/VPCEJ2/VPCEK2/VPCEL2 Series

Task

Installing/Removing the Battery Pack

Install the battery pack into the battery compartment on the bottom of your VAIO computer.

To install the battery pack

  1. Turn off your VAIO computer and close the LCD screen lid.

  1. Slide the battery LOCK switch to the unlock position.

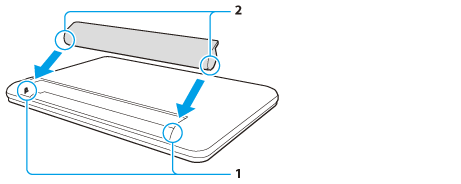

  1. Slide the battery pack diagonally into the battery compartment until the projections (1) on either side of the battery compartment fit into the grooves (2) on either side of the battery pack.

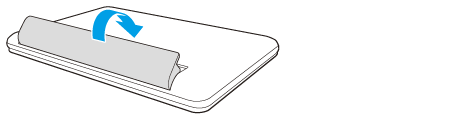

  1. Turn the battery pack in the direction of the arrow and push the battery pack down into the compartment until it clicks into place.

  1. Slide the battery LOCK switch to the LOCK position to secure the battery pack on your VAIO computer.

To remove the battery pack

  1. Turn off your VAIO computer and close the LCD screen lid.

  1. Slide the battery LOCK switch to the unlock position.

  1. Slide and hold the battery RELEASE latch, put your fingertip underneath the tab on the battery pack, and lift the battery pack in the direction of the arrow.

  1. Slide the battery pack diagonally to take out from your VAIO computer.

Note
  • You will lose all unsaved data if you remove the battery pack while your VAIO computer is on or in Sleep mode and not connected to the AC adapter.
    Be sure to turn off the computer before removing the battery pack.
