Reference

Parts and Controls on the Docking Station

Connecting a docking station (supplied or optional) to your VAIO computer enables you to use many peripheral devices with the computer.

You can keep the devices, such as an AC adapter and a USB printer, connected to the docking station to save you connecting them each time you intend to use.

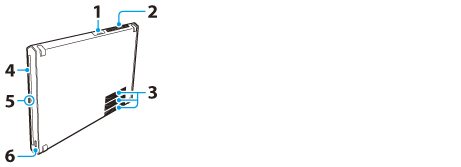

Front

USB port [Details]

Air exhaust vent

Air intake vents

Optical disc drive [Details]

Power indicator

The indicator light is on in situations, such as when the docking station is connected to your VAIO computer and while data access to a disc, such as a CD and DVD, is in progress.

The indicator light turns on in green when the docking station is connected to the computer, blinks in orange while the computer is in Sleep mode, and blinks in yellow while data access to the optical disc drive is in progress.

Disc eject button [Details]

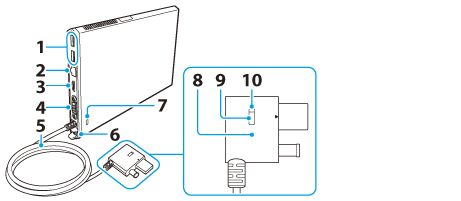

Back

USB ports [Details]

LAN port [Details]

HDMI output port [Details]

Monitor port [Details]

Connector cable

DC IN port [Details]

Security slot

Docking station connector [Details]

UNDOCK button [Details]

IN USE indicator [Details]

The indicator light is on while your VAIO computer and the docking station are communicating with each other.
