Parts and Controls on the Sides

Describes the features on the sides of the VAIO computer, such as connection ports.

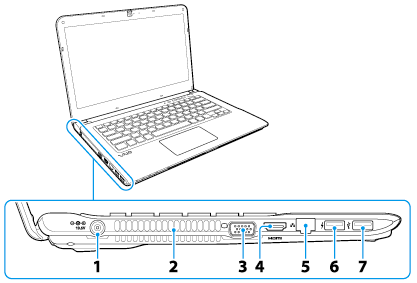

  1. DC IN port [Details]

  1. Air exhaust vent

  1. Monitor port [Details]

  1. HDMI output port [Details]

  1. LAN port [Details]

  1. USB port [Details]

This USB port supports USB charging. [Details]

  1. USB port [Details]

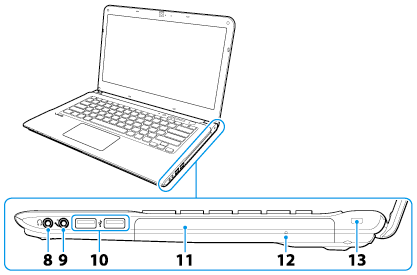

  1. Headphones jack [Details]

  1. Microphone jack [Details]

  1. USB port × 2 [Details]

  1. Optical disc drive [Details]

  1. Manual eject hole

  1. Security slot
