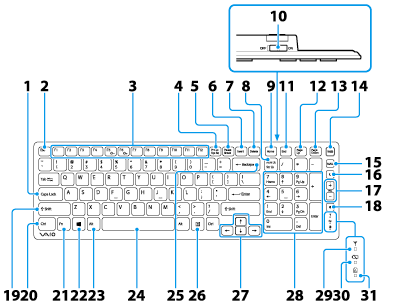

Parts and Controls of the Keyboard

Describes the features of the keyboard, such as keys, buttons and indicator lights.
  1. Caps Lock key [Details]

  1. Esc key

  1. Function keys [Details]

  1. Prt Sc key

  1. Pause / Break key

  1. Insert key

  1. Delete key

  1. Num Lk / Scr Lk key [Details]

  1. Home key

  1. Power switch of the keyboard

  1. End key

  1. Page Up key

  1. Page Down key

  1. WEB button

  1. MAIL button

  1. Sleep button [Details]

  1. Volume control buttons [Details]

  1. Muting button [Details]

  1. Shift key

  1. Ctrl key

  1. Fn key [Details]

  1. (Windows) key [Details]

  1. Alt key

  1. Space bar

  1. Backspace key

  1. Applications key

  1. Directional arrow keys

  1. Numeric keypad

  1. Connect indicator [Details]

  1. Battery indicator [Details]

  1. Caps lock indicator [Details]

Note
  • If the keyboard or mouse is not used for about 10 seconds, the connect indicator blinks.

Hint
  • There is a raised dot on the F, J and 5 keys.

  • After 10 minutes of idle time, the keyboard enters the power saving mode and all indicator lights turn off.

  • For details on the keyboard shortcut keys, see Windows Help and Support. [Details]
