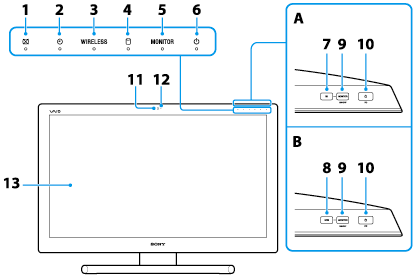

Parts and Controls on the Front
Describes the features on the front of the VAIO computer, such as buttons and indicator lights.
A. 3D-capable LCD screen equipped models
B. Models with no 3D-capable LCD screen
-
Picture off indicator [Details]
While using the Picture Off function, the picture off indicator lights in orange.
-
Timer indicator [Details]
When you set the timer, the timer indicator light turns on in orange.
-
WIRELESS indicator
-
Disc drive indicator
-
MONITOR indicator [Details]
-
PC power indicator [Details]
-
3D button (3D-capable LCD screen equipped models)
-
WEB button (WEB button equipped models) [Details]
-
MONITOR power button [Details]
-
PC power button [Details]
-
Built-in camera [Details]
-
Built-in camera indicator [Details]
-
LCD screen or touch screen [Details]
Notes on the LCD screen
The LCD screen is manufactured using high-precision technology. You may, however, see tiny black points and/or bright points (red, blue, or green) that continuously appear on the LCD screen. The ratio of defective pixels to all available pixels of the LCD screen is less than 0.0006 %. Also, depending on the viewing angle, uneven stripes of changes in color and luminance may appear. These are normal results of the LCD screen construction and do not indicate a malfunction. Take note that returns and replacements are not accepted.
