Parts and Controls on the Front

Describes the features on the front of the VAIO computer, such as buttons and indicator lights.

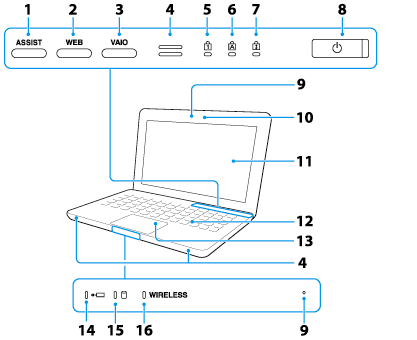

SVT111 / SVT131

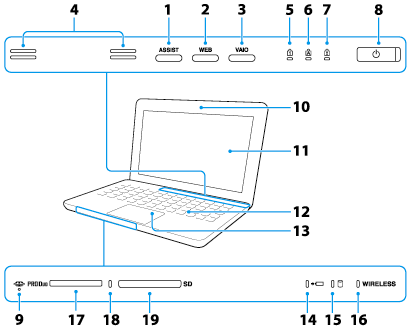

SVT141

  1. ASSIST button [Details]

  1. WEB button [Details]

  1. VAIO button [Details]

  1. Built-in speakers (stereo)*1

  1. Num lock indicator

  1. Caps lock indicator

  1. Scroll lock indicator

  1. Power button / Power indicator [Details]

  1. Built-in microphone (monaural)*2

  1. Built-in camera / Built-in camera indicator [Details]

  1. LCD screen or touch screen (Touch screen equipped models) [Details]

  1. Keyboard

  1. Touch pad [Details]

  1. Charge indicator [Details]

  1. Disc drive indicator

  1. WIRELESS indicator [Details]

  1. “Memory Stick Duo” slot [Details]

  1. Media access indicator (“Memory Stick Duo” [Details], SD memory card [Details])

  1. SD memory card slot [Details]

*1 The location of the built-in speakers depends on the model.
*2 The location of the built-in microphone depends on the model.
