Parts and Controls on the Sides

Describes the features on the sides of the VAIO computer, such as connection ports.

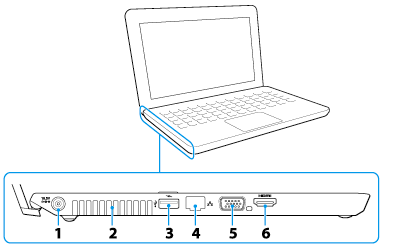

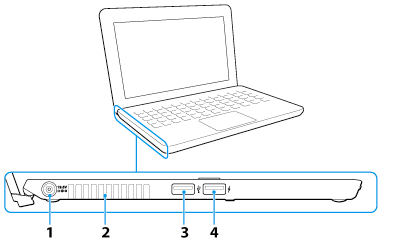

SVT131

  1. DC IN port [Details]

  1. Air exhaust vent

  1. USB port [Details]

  1. USB port [Details]

This USB port supports USB charging. [Details]
The location of the mark depends on the model.


  1. Headphones jack [Details]

  1. Media access indicator (“Memory Stick Duo” [Details], SD memory card [Details])

  1. “Memory Stick Duo” / SD memory card combined slot (“Memory Stick Duo” [Details], SD memory card [Details])

“Memory Stick Duo” and an SD memory card cannot be inserted into the slot simultaneously.

  1. HDMI output port [Details]

  1. Monitor port [Details]

  1. LAN port [Details]


SVT141

  1. DC IN port [Details]

  1. Air exhaust vent

  1. USB port [Details]

This USB port supports USB charging. [Details]

  1. LAN port [Details]

  1. Monitor port [Details]

  1. HDMI output port [Details]



  1. Headset compatible headphones jack [Details]

  1. USB port [Details]

  1. Optical disc drive [Details]

  1. Drive eject button [Details]

  1. Manual eject hole
