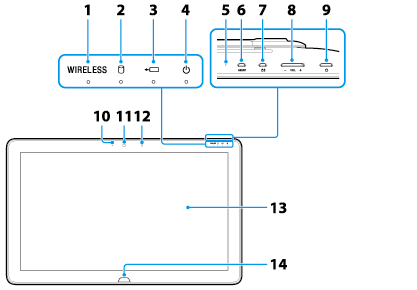

Parts and Controls on the Front

Describes the features on the front of the VAIO computer, such as buttons and indicator lights.

  1. WIRELESS indicator [Details]

  1. Disc drive indicator

  1. Charge indicator [Details]

  1. Power indicator [Details]

  1. Built-in microphone (monaural)

  1. ASSIST button [Details]

  1. Rotation lock button [Details]

Press to lock the screen to prevent it from rotating when you turn your VAIO computer. Press again to release the lock.

  1. VOL (Volume) buttons

  1. Power button [Details]

  1. Built-in camera indicator [Details]

  1. Built-in camera [Details]

  1. Ambient light sensor [Details]

  1. Touch screen [Details]

  1. Windows button [Details]

Notes on the LCD screen

The LCD screen is manufactured using high-precision technology. You may, however, see tiny black points and/or bright points (red, blue, or green) that continuously appear on the LCD screen. The ratio of defective pixels to all available pixels of the LCD screen is less than 0.0006 %. Also, depending on the viewing angle, uneven stripes of changes in color and luminance may appear. These are normal results of the LCD screen construction and do not indicate a malfunction. Take note that returns and replacements are not accepted.
