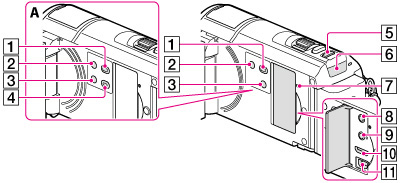

Parts and controls
-
Active Interface Shoe (HDR-CX580V/PJ580/PJ580V/PJ600/PJ600V)
-
Lens (G lens)
-
Flash (HDR-CX580V/PJ580/PJ580V/PJ600/PJ600V)/Video light (HDR-CX580V/PJ580/PJ580V)
-
Built-in microphone
-
Remote sensor/Infrared port (HDR-PJ260/PJ260V/PJ580/PJ580V/PJ600/PJ600V)
-
Camera recording lamp (HDR-CX580V/PJ580/PJ580V/PJ600/PJ600V)
-
LCD screen/Touch panel
-
Speakers (HDR-CX580V/PJ260/PJ260V/PJ580/PJ580V/PJ600/PJ600V/XR260V)
-
Projector lens (HDR-PJ260/PJ260V/PJ580/PJ580V/PJ600/PJ600V)
-
PROJECTOR FOCUS lever (HDR-PJ260/PJ260V/PJ580/PJ580V/PJ600/PJ600V)
-
GPS antenna (HDR-CX260V/CX580V/PJ260V/PJ580V/PJ600V/XR260V)
-
(View Images) button
-
POWER button
-
LIGHT (Video Light) button (HDR-CX580V/PJ580/PJ580V)
-
PROJECTOR button (HDR-PJ260/PJ260V/PJ580/PJ580V/PJ600/PJ600V)
-
MODE button
-
(Movie)/ (Photo) lamp
-
RESET button
-
(headphones) jack (HDR-CX580V/PJ260/PJ260V/PJ580/PJ580V/PJ600/PJ600V/XR260V)
-
(microphone) jack (PLUG IN POWER)
-
HDMI OUT jack
-
(USB) jack
-
Speaker (HDR-CX250/CX260V)
-
Power zoom lever
-
PHOTO button
-
CHG (charge) lamp
-
Battery pack
-
START/STOP button
-
DC IN jack
-
A/V Remote Connector
-
Grip belt
-
Built-in USB Cable
-
Memory card access lamp
-
Tripod receptacle
-
Memory card slot
-
BATT (battery) release lever
To fasten the grip belt
To attach the lens hood (HDR-CX580V/PJ580/PJ580V/PJ600/PJ600V)
-
When attaching the lens hood, align the opening section of the lens hood with the flash-emitting section of the camcorder properly.
-
To remove the lens hood, turn the securing ring of the lens hood in the opposite direction from that of the arrow.
-
Remove the lens hood when you operate the camcorder with the supplied remote commander.
Wireless Remote Commander (HDR-PJ260/PJ260V/PJ580/PJ580V/PJ600/PJ600V)
-
DATA CODE button
-
PHOTO button
-
SCAN/SLOW buttons
-
/ (Previous/Next) buttons
-
PLAY button
-
STOP button
-
DISPLAY button
-
Transmitter
-
START/STOP button
-
Power zoom buttons
-
PAUSE button
-
VISUAL INDEX button
-
////ENTER buttons
