Before Use

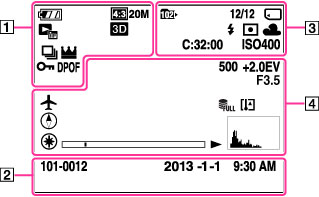

List of icons displayed on the screen
Icons are displayed on the screen to indicate the camera status.
You can change the screen display using
(Display Setting) on the control wheel.
(Display Setting) on the control wheel.List of shooting mode icons
|
Display
|
Indication
|
 |
Battery remaining
|
 |
Low battery warning
|
 |
Image size/Panorama image size/Quality
|
|
9
|
Number of recordable images (Dual Rec)
|
 |
Memory recall mode
|
 |
Scene Selection
|
 |
Shooting mode
|
 |
Scene Recognition icon
|
 |
White balance
|
 |
White balance Shift
|
 |
Metering Mode
|
|
Picture Effect
|
 |
Vibration warning
|
 |
Anti Blink
|
 |
Scene Recognition
|
 |
Overlay icon
|
 |
Burst Shooting Interval
|
 |
Bracket Shooting
|
 |
Bracket Setting
|
 |
Color Mode
|
 |
Color Saturation
|
 |
Contrast
|
 |
Sharpness
|
 |
Noise reduction
|
 |
Smile Detection Sensitivity indicator
|
 1.4
 |
Zoom scaling
|
|
Display
|
Indication
|
 |
Tracking focus
|
 |
AE/AF lock
|
 |
Semi Manual
|
 |
Manual Focus
|
 |
Manual Focus bar
|
 |
Level
|
|
ISO400
|
ISO number
|
 |
NR slow shutter
|
|
125
|
Shutter speed
|
|
F3.5
|
Aperture value
|
|
+2.0EV
|
Exposure value
|
 |
AF range finder frame indicator
|
|
Display
|
Indication
|
 |
Recording folder
|
|
96
|
Number of recordable images
|
 |
Buffer writing
|
|
CAPTURE
|
Importing still images
|
|
100Min
|
Recordable time
|
 |
Recording Media (Memory card, internal memory)
|
 |
Eye-Fi Mode display
|
 |
GPS Log REC (DSC-HX50V)
|
 |
Warning indicator pertaining to still image recording
|
 |
GPS triangulating status (DSC-HX50V)
|
 |
Flash mode
|
|
C:32:00
|
Self-diagnosis display
|
 |
AF Illuminator
|
 |
Red-eye reduction
|
 |
Defocus Effect
|
 |
Flash charging
|
|
Display
|
Indication
|
 |
Self-timer
|
 |
Airplane Mode
|
 |
Destination (DSC-HX50)
|
 |
Face detection
|
 |
Soft Skin Effect
|
 |
Micref Level (Microphone reference level)
|
 |
Database file full/Database file error
|
 |
Overheating warning
|
 |
Write Date
|
 |
AF range finder frame
|
 |
Spot metering cross-hairs
|
 |
Wind Noise Reduction
|
 |
Histogram
|
|
REC
Standby
|
Recording a movie/Movie standby
|
|
0:12
|
Recording time (m:s)
|
List of viewing mode icons
|
Display
|
Indication
|
|
|
Battery remaining
|
|
|
Low battery warning
|
|
|
Image size/Panorama image size/Quality
|
 |
View mode
|
|
|
3D images
|
 |
Burst Images
|
 |
Main image in the burst group
|
 |
Protect
|
 |
Print order (DPOF)
|
 |
Playback zoom
|
|
Display
|
Indication
|
|
101-0012
|
Folder-file number
|
|
2013-1-1
9:30 AM
|
Recorded date/time of the playback image
|
|
Display
|
Indication
|
 |
Playback folder
|
|
12/12
|
Image number/Number of images recorded in selected date range, folder
|
|
|
Playback Media (Memory card, internal memory)
|
|
Eye-Fi Mode display
|
|
Flash mode
|
|
|
Metering Mode
|
|
White balance
|
|
C:32:00
|
Self-diagnosis display
|
|
ISO400
|
ISO number
|
|
Display
|
Indication
|
|
500
|
Shutter speed
|
|
+2.0EV
|
Exposure value
|
|
F3.5
|
Aperture value
|
 |
Direction
|
|
|
Airplane Mode
|
 |
GPS information
|
|
35˚37´32˝N
139˚44´31˝E
|
Latitude and longitude display
|
|
|
Database file full/Database file error
|
|
|
Overheating warning
|
 |
Playback
|
|
Variable speed playback
|
 |
Playback bar
|
|
00:00:12
|
Counter
|
|
|
Histogram
|
 |
Volume
|
