List of icons displayed on the screen

Icons are displayed on the screen to indicate the camera status.
You can change the screen display using (Display Setting) on the control button.

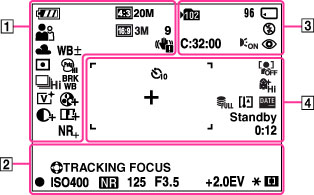

List of shooting mode icons

  1.


Display
Indication
Battery remaining
Low battery warning
Image size/Panorama image size/Quality
9
Number of recordable images (Dual Rec)
Memory recall mode
Scene Selection
Shooting mode
Scene Recognition icon
White balance
White balance Shift
Picture Effect
Vibration warning
Metering Mode
Anti Blink
Scene Recognition
Overlay icon
Burst Shooting Interval
Bracket Shooting
Bracket Setting
Color Mode
Color Saturation
Contrast
Sharpness
Noise reduction
Smile Detection Sensitivity indicator
1.4
Zoom scaling

  1.


Display
Indication
Tracking focus
AE/AF lock
ISO400
ISO number
NR slow shutter
125
Shutter speed
F3.5
Aperture value
Wind Noise Reduction
+2.0EV
Exposure value
AE lock
AF range finder frame indicator
Manual focus
Focus bar

  1.


Display
Indication
Recording folder
96
Number of recordable images
Buffer writing
CAPTURE
Importing still images
100Min
Recordable time
Recording Media (Memory card, internal memory)
Eye-Fi Mode display
Warning indicator pertaining to still image recording
Flash mode
Flash level
C:32:00
Self-diagnosis display
AF Illuminator
Red-eye reduction
Defocus Effect
Flash charging

  1.


Display
Indication
EVF/LCD switch
Self-timer
Face detection
Soft Skin Effect
Micref Level (Microphone reference level)
Database file full/Database file error
Overheating warning
Write Date
AF range finder frame
Spot metering cross-hairs
Histogram
REC
Standby
Recording a movie/Movie standby
0:12
Recording time (m:s)
Level

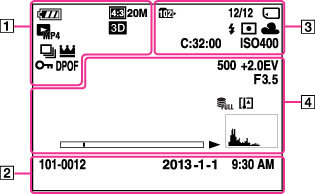

List of viewing mode icons

  1.


Display
Indication
Battery remaining
Low battery warning
Image size/Panorama image size/Quality
View mode
3D images
Burst Images
Main image in the burst group
Protect
Print order (DPOF)
Playback zoom

  1.


Display
Indication
101-0012
Folder-file number
2013-1-1
9:30 AM
Recorded date/time of the playback image

  1.


Display
Indication
Playback folder
12/12
Image number/Number of images recorded in selected date range, folder
Playback Media (Memory card, internal memory)
Eye-Fi Mode display
Flash mode
Metering Mode
White balance
C:32:00
Self-diagnosis display
ISO400
ISO number

  1.


Display
Indication
500
Shutter speed
+2.0EV
Exposure value
F3.5
Aperture value
Database file full/Database file error
Overheating warning
Playback
Variable speed playback
Playback bar
00:00:12
Counter
EVF/LCD switch
Histogram
Volume
