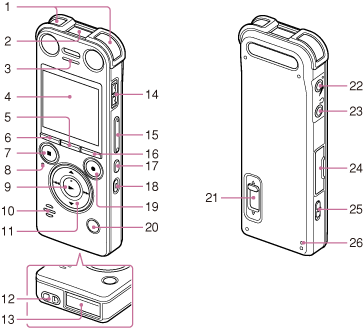

1. Built-in microphones (stereo) (L/R)
2. Built-in zoom microphone (monaural)
3. Peak lamp (ICD-SX1000 only)
4. Display window
5. SCENE button
6. (folder) button
7. STOP button
8. Access lamp
9. (play/enter) button (*1)
10. Speaker
11. Control button (, / (review/fast backward), (cue/fast forward))
12. Strap hole (A strap is not supplied.)
13. USB connector compartment (The USB connector is stored inside.)
14. POWER ON/OFF•HOLD switch
15. VOL –/+ (volume –/+) buttons (*1)
16. MENU button
17. A-B (repeat A-B) button
18. ERASE button
19. REC/PAUSE (record/pause) button, recording lamp
20. TRACK MARK button
21. USB DIRECT slide lever
22. (microphone) jack (PLUG IN POWER) (*1)
23. (headphones) jack
24. M2™/microSD memory card slot (The card slot is in the cover.) (*2)
25. DPC (SPEED)/KEY CTRL (control) switch
26. RESET button

^*1 These buttons and the jack have a tactile dot. Use it as a reference point for operations, or to identify each terminal.

^*2 In this Help Guide, M2™ and microSD cards are generally referred to as a “memory card.” The M2™/microSD card slot is referred to as the “memory card slot.”

Note

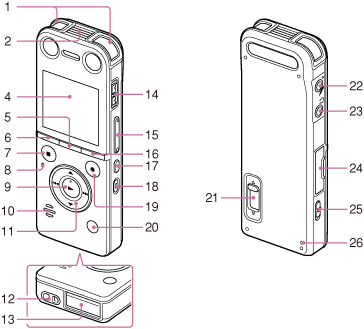

• The illustrations used in this Help Guide are based on the ICD-SX1000 model. These illustrations may look different from the model you are using, however, the buttons and controls used for operations are the same.
