IC RecorderICD-SX733/SX734/SX1000

Parts and controls

ICD-SX1000

ICD-SX733/SX734

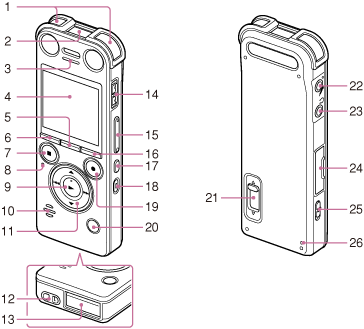

  1. Built-in microphones (stereo) (L/R)
  2. Built-in zoom microphone (monaural)
  3. Peak lamp (ICD-SX1000 only)
  4. Display window
  5. SCENE button
  6. (folder) button
  7. souni_stopSTOP button
  8. Access lamp
  9. (play/enter) button (*1)
  10. Speaker
  11. Control button (, / (review/fast backward), (cue/fast forward))
  12. Strap hole (A strap is not supplied.)
  13. USB connector compartment (The USB connector is stored inside.)
  14. POWER ON/OFF•HOLD switch
  15. VOL –/+ (volume –/+) buttons (*1)
  16. MENU button
  17. iG060A-B (repeat A-B) button
  18. ERASE button
  19. souni_recREC/PAUSE (record/pause) button, recording lamp
  20. TRACK MARK button
  21. USB DIRECT slide lever
  22. (microphone) jack (PLUG IN POWER) (*1)
  23. (headphones) jack
  24. M2™/microSD memory card slot (The card slot is in the cover.) (*2)
  25. DPC (SPEED)/KEY CTRL (control) switch
  26. RESET button

*1 These buttons and the jack have a tactile dot. Use it as a reference point for operations, or to identify each terminal.

*2 In this Help Guide, M2™ and microSD cards are generally referred to as a “memory card.” The M2™/microSD card slot is referred to as the “memory card slot.”

Note

  • The illustrations used in this Help Guide are based on the ICD-SX1000 model. These illustrations may look different from the model you are using, however, the buttons and controls used for operations are the same.
