Front

Rear

1. Illumination LED

2. NFC touchpoint (N-Mark)

3. DC-IN jack

4. HDMI output connector

5. RESET switch

   To reset: While PCS is turned on, press and hold the RESET switch for more than five seconds, and confirm the illumination LED shows a change.

6. USB port

7. WPS (Wi-Fi Protected Setup™) button

8. (Power) button

9. Access lamp

10. Memory card slot ("Memory Stick Duo"/SD card)

11. Label (on the underside)

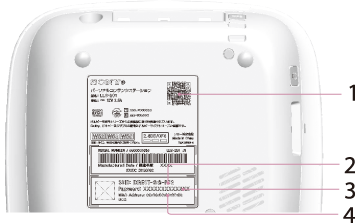

Underside (label)

1. 2D code

2. SSID

3. Password

4. MAC address
