1. Press the OPTIONS button on the remote control, then select [Settings] — [Network] — [Network and Internet] list.

[Wi-Fi]

You can turn the built-in Wi-Fi on or off and choose which Wi-Fi networks you want to connect to. You can also add private Wi-Fi networks if you want to connect to them.

[Scanning always available]

Set this to enable Google's location services and other apps to scan your network when Wi-Fi is off.

[ETHERNET]

Displays “Connected” and the MAC address when the connection is successful.

[Proxy settings]

Specify the server name and port number manually when using a proxy server.

Note

• HTTP proxy only applies to web browsers, not other apps.

[IP settings]

You can select how the IP address is obtained. For manual settings, select [Static] and enter a valid IP address. At this time, you can set the DNS server. For automatic settings, enable [DHCP].

[Network status]

Displays the current network status. You can perform connection diagnosis by pressing (Enter) button on the remote control.

[Remote device settings]

Configure settings to enable display control via apps on mobile devices.

[Local network setup]

To control the display from an external device on the local network, make the following settings.

[Server diagnostics]

Diagnoses whether the device can connect to a server on the local network.

[DLNA player]

If this is enabled, you can play back recorded data or music data saved on other devices in the local network.

[IP control]

Specify the settings required to connect the display and external applications or software to the same network and control them using APIs and protocols provided by BRAVIA Professional Display.

Root certificate

You can check the Issuer Name, Organization Name, Certificate Authority, and SHA256 Fingerprint of the root certificate.

Root Certificate Export

You can export the root certificate to a USB flash drive.

Authentication

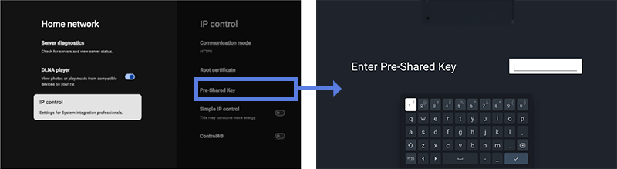

The communication method is HTTPS, and the authentication method is fixed to Pre-Shared Key. When enabled, the Pre-Shared Key setting window appears. Specify the key with 16 to 20 characters.

[Simple IP control]

Simple IP Control is a TCP-based low-level protocol provided free of charge. Enable it if you want to use it.

[Control4®]

The BRAVIA Professional Display is compatible with the Control4 integrated control platform, allowing you to control the display and integrate with other smart home devices from the Control4® system. Enable it if you want to use it.
