Overview

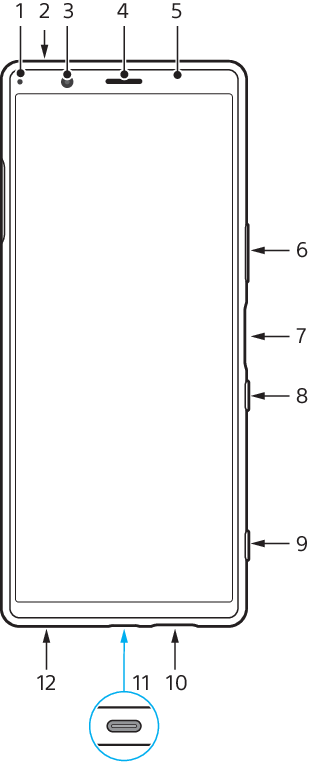

    Diagram of front view showing each part by number. Upper part, from left to right, 1 to 5. Right side, from top to bottom, 6 to 9. Bottom side, from right to left, 10 to 12.Diagram of rear view showing each part by number. Upper left area, from left to right, 13 to 16. Upper center area, 17. Right side, 18. Right side area, 19. Left side area, 20. Bottom side area, 21.
    1Charging/Notification light
    2Second microphone
    3Front camera
    4Ear speaker/Second loudspeaker
    5Proximity/Light sensor
    6Volume/Zoom key
    7Fingerprint sensor
    8Power key
    9Camera key
    10Main loudspeaker
    11

    USB port/Charger/Audio adapter

    You can view the screen of your device on a TV or other large display device using a USB Type-C cable.

    Note

    When you connect your device to a TV or other large display using a USB Type-C cable, the cable must be compatible with the display port standard. Note that some functions or content on your Xperia device may not be displayable on the TV or display device.

    12Main microphone

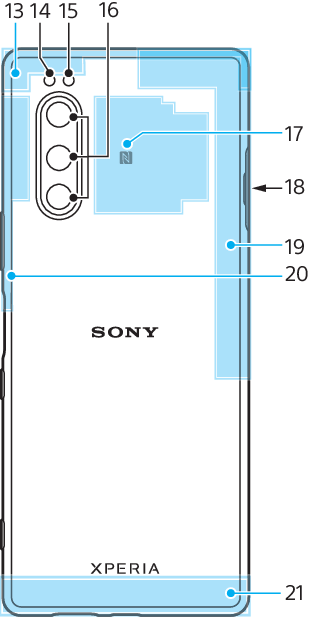

    Diagram of rear view showing each part by number. Upper left area, from left to right, 13 to 16. Upper center area, 17. Right side, 18. Right side area, 19. Left side area, 20. Bottom side area, 21.
    13Sub cellular antenna
    14Flash LED
    15RGBC IR sensor
    16Main camera
    17NFC detection area
    18Nano SIM/Memory card slot
    194th cellular/Wi-Fi/Bluetooth®/GPS antenna
    203rd cellular antenna
    21Main cellular antenna
