Wearable Thermo Device Sensing KitRNPK-6T

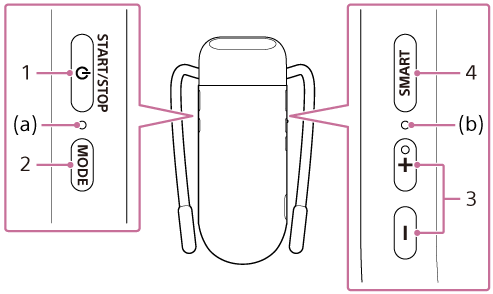

START/STOP/ (power) button

Starts/stops operation. Pressing and holding the button for about 2 seconds turns the unit on/off.

MODE button

Switches between COOL (cooling operation) and WARM (warming operation).

• When the mode is changed, the mode LED (a) will light up for about 5 seconds in the color shown below corresponding to the mode.
  • SMART COOL ⇔ WARM mode^*: green
  • SMART COOL / MANUAL COOL mode: blue
  • SMART WARM / MANUAL WARM mode: orange

  ^* REON POCKET TAG (included) is required to use this function. For details on how to use REON POCKET TAG, refer to the following Help Guide.
  https://rd1.sony.net/help/reonpocket/rnpt1/h_zz/

• After switching modes, the mode LED (a) will be in the following state depending on the operating condition.
  • Operating: Remains lit in a color corresponding to the current mode.
  • Stopped: Flashes continuously in a color corresponding to the current mode.

+ (plus) button / − (minus) button

Changes the cooling/warming setting.

• When the setting is changed, the status LED (b) will flash. The color of the LED indicates the current mode, and the number of flashes indicates the current setting. The table below shows the flashing color and number of flashes for each mode.

  Mode	Flashing color	Number of flashes
  		1 time	2 times	3 times	4 times	5 times
  MANUAL COOL mode	Blue	Level 1 (low)	Level 2	Level 3	Level 4	Level 5 (strong)
  MANUAL WARM mode	Orange	Level 1 (low)	Level 2	Level 3	Level 4 (strong)	―
  SMART COOL mode	Green	Low Cool	Slightly Low Cool	Medium (Recommended)	Slightly High Cool	High Cool
  SMART WARM mode	Green	Low Warm	Slightly Low Warm	Medium (Recommended)	Slightly High Warm	High Warm

SMART button

Switches between the SMART COOL / SMART WARM mode and the MANUAL COOL / MANUAL WARM mode.

• While the unit is operating, the status LED (b) indicates the current mode.
  • SMART COOL / SMART WARM mode: lights up in green
  • MANUAL COOL / MANUAL WARM mode: off
