Parts and controls

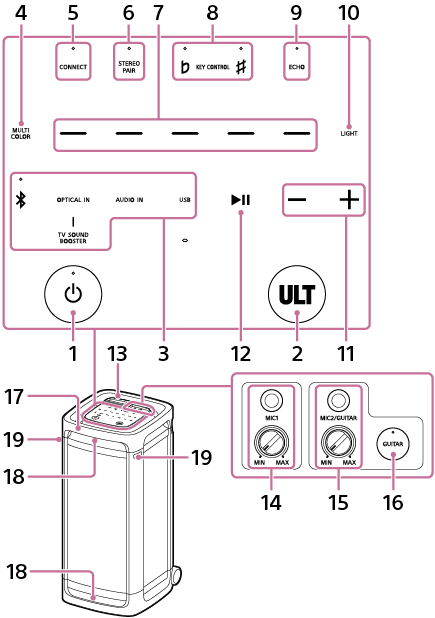

Illustration of the speaker when viewed from its front side. 13 is located in the upper right of the top surface, and when it is opened, there are a button and jacks. From the left, there are 14, 15, and 16. The touch keys and buttons are located below 13. The locations of the components are as follows. In the top row, from the left, there are 5, 6, 8, and 9. In the second row from the top, from the left, there are 4, 7, and 10. In the third row from the top, from the left, there are 3, 12, and 11. In the lowest row, 1 is on the left and 2 is on the right. On the upper part of the speaker is 17, and 18 is both on the upper and lower parts of the speaker. 19 is on both the left and right sides at the front of the speaker.

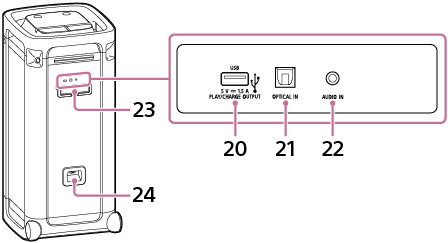

Illustration of the speaker when viewed from its rear side. 23 is located at the upper part of the rear surface, and when it is opened, there are the port, connector, and jack. From the left, there are 20, 21, and 22. 24 is on the lower part of the rear surface.

  1. (power) button with indicator

  2. ULT button

  3. Direct function keys

    • (BLUETOOTH) with indicator

    • OPTICAL IN

    • TV SOUND BOOSTER

    • AUDIO IN

    • USB

  4. MULTI COLOR

  5. CONNECT with indicator

  6. STEREO PAIR with indicator

  7. Lighting color selectors (red/yellow/green/blue/purple)

  8. KEY CONTROL (flat) with indicator/(sharp) with indicator

  9. ECHO with indicator

  10. LIGHT

  11. –/+ (volume)

  12. (play)*

  13. Cap

  14. MIC1 jack (Φ 6.3 mm)

    MIC level (MIN/MAX) knob

  15. MIC2/GUITAR jack (Φ 6.3 mm)

    MIC and GUITAR level (MIN/MAX) knob

  16. GUITAR button with indicator

  17. Handle

  18. Lights

  19. Mic holders

  20. PLAY/CHARGE OUTPUT (DC power output only) port (USB)

  21. OPTICAL IN (optical digital audio input) connector

  22. AUDIO IN jack (Φ 3.5 mm)

  23. Cap

  24. AC input jack

* Touching and holding(play) on the speaker for about 5 seconds makes the speaker play the music track stored for demonstration purposes. To disable this feature, tap(play) on the speaker once again.

Note

  • The port, connector, and jacks on the speaker are not designed for water resistant. Do not use the speaker in places where the speaker is likely to have water splashed on it. When you are finished with using the speaker, be sure to securely close the caps.
