Overview

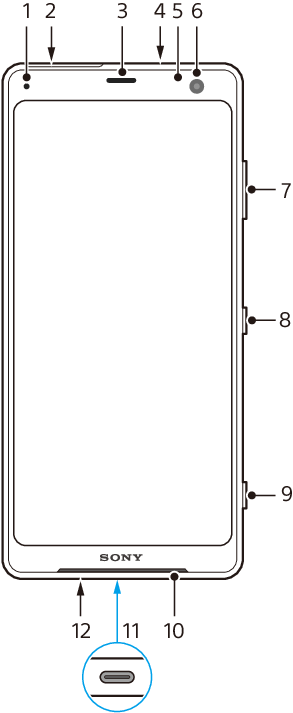

| 1 | Charging/Notification light |
| 2 | Nano SIM/Memory card slot |
| 3 | Ear speaker/Second loudspeaker |
| 4 | Second microphone |
| 5 | Proximity/Light sensor |
| 6 | Front camera |
| 7 | Volume/Zoom key |
| 8 | Power key |
| 9 | Camera key |
| 10 | Main loudspeaker |
| 11 | USB port/Charger/Audio adapter |
| 12 | Main microphone |

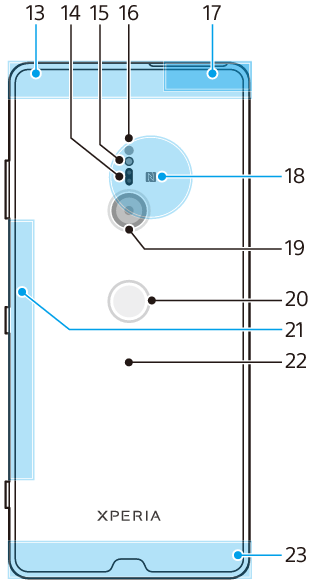

| 13 | Sub cellular antenna area |
| 14 | Laser AF sensor |
| 15 | Flash LED |
| 16 | RGBC IR sensor |
| 17 | Wi-Fi®/Bluetooth® antenna area |
| 18 | NFC™ detection area |
| 19 | Main camera |
| 20 | Fingerprint sensor |
| 21 | Sub Wi-Fi antenna |
| 22 | Wireless charging coil |
| 23 | Main cellular antenna area |
