System Configuration Examples
This topic shows live streaming system configuration examples using PWA-RX1.
Remarks
- The network services, content, operating systems, and software implemented in or made available through this product are subject to their own terms of use. The product may be changed, interrupted, or discontinued at any time without notice.
- When connecting a PC running this software to a network, connect via a router or connect to a LAN port with a router function. If you connect it without a router function, a security issue may occur.
Note
- Once a security issue occurs, your product may suffer damage caused by malware (malicious software) via the Internet and be exposed to security threats, such as extraction or tampering of content or customer’s information. Not only that, your product may cause damage to the network services without your knowledge.
- Always use this software with the Microsoft Windows Firewall function enabled.

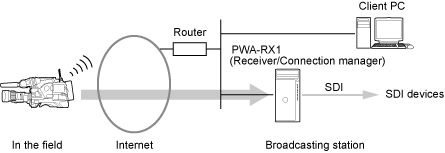

Configuration using a single PWA-RX1 instance
This shows a small-scale system using a single PWA-RX1 instance. The PWA-RX1 instance acts as both streaming receiver and connection manager.
Note
- To stream from a camcorder, a camcorder with network functions is required. For details about supported camcorders, consult your Sony representative.

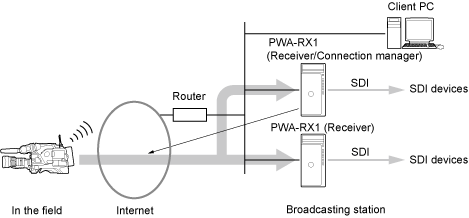

Configuration using multiple PWA-RX1 instances
Additional PWA-RX1 instances acting as streaming receivers can be used. The following configuration shows an example with one PWA-RX1 instance acting as both streaming receiver and connection manager, and another PWA-RX1 instance acting as a streaming receiver.
When using a multiple configuration, control the instances from a web browser on a client PC, and not the PCs on which PWA-RX1 is installed.
Note
- Systems with mixed PWA-RX1 instances with PWS-110RX1A units are not supported.
- A PWA-RX1 instance can connect its own receiver and another PWA-RX1 receiver to a single Connection Control Manager. Up to two receivers can be connected.

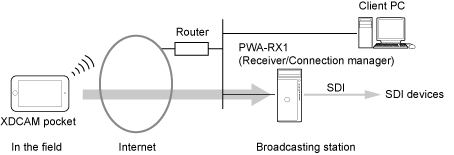

When using XDCAM pocket
You can receive a stream from XDCAM pocket.

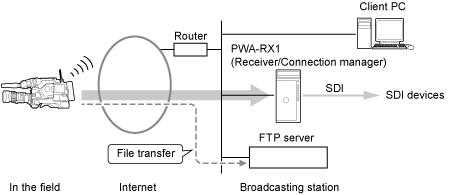

When transferring files from camcorder to FTP server
You can transfer video files (clips) stored on an SD card in the camcorder to an FTP server. Configure the FTP server on the same network as the PCs on which PWA-RX1 is installed, as shown below.

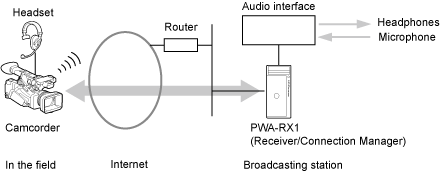

When using an intercom
You can make calls between the broadcast station and instances in the field using camcorders with an intercom function.
The audio interface is sold separately. For details about supported devices, refer to the “Software Installation Guide.”

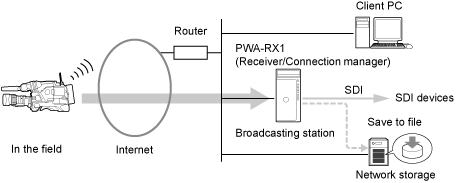

Saving video images during streaming to a file
Network storage connected to the same network as PCs on which PWA-RX1 is installed can be used to store video images during streaming.
When storing video images during streaming, control the instances from a web browser on a client PC, and not the PCs on which PWA-RX1 is installed.

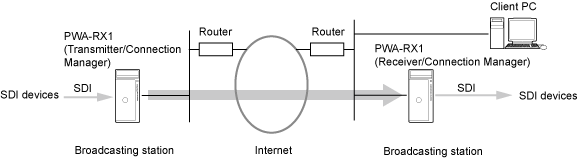

Point-to-point streaming
You can stream the SDI input of a PC on which PWA-RX1 is installed to another PWA-RX1 instance.

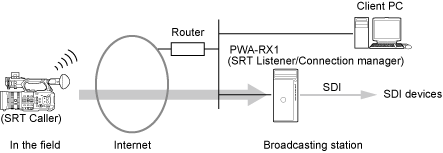

Streaming using SRT
Streaming using an SRT-compatible camcorder acting as the SRT Caller and a PWA-RX1 instance acting as the SRT Listener.
