Blockdiagram
Blockdiagrammen är relaterade till ljud och menyn [Audio].

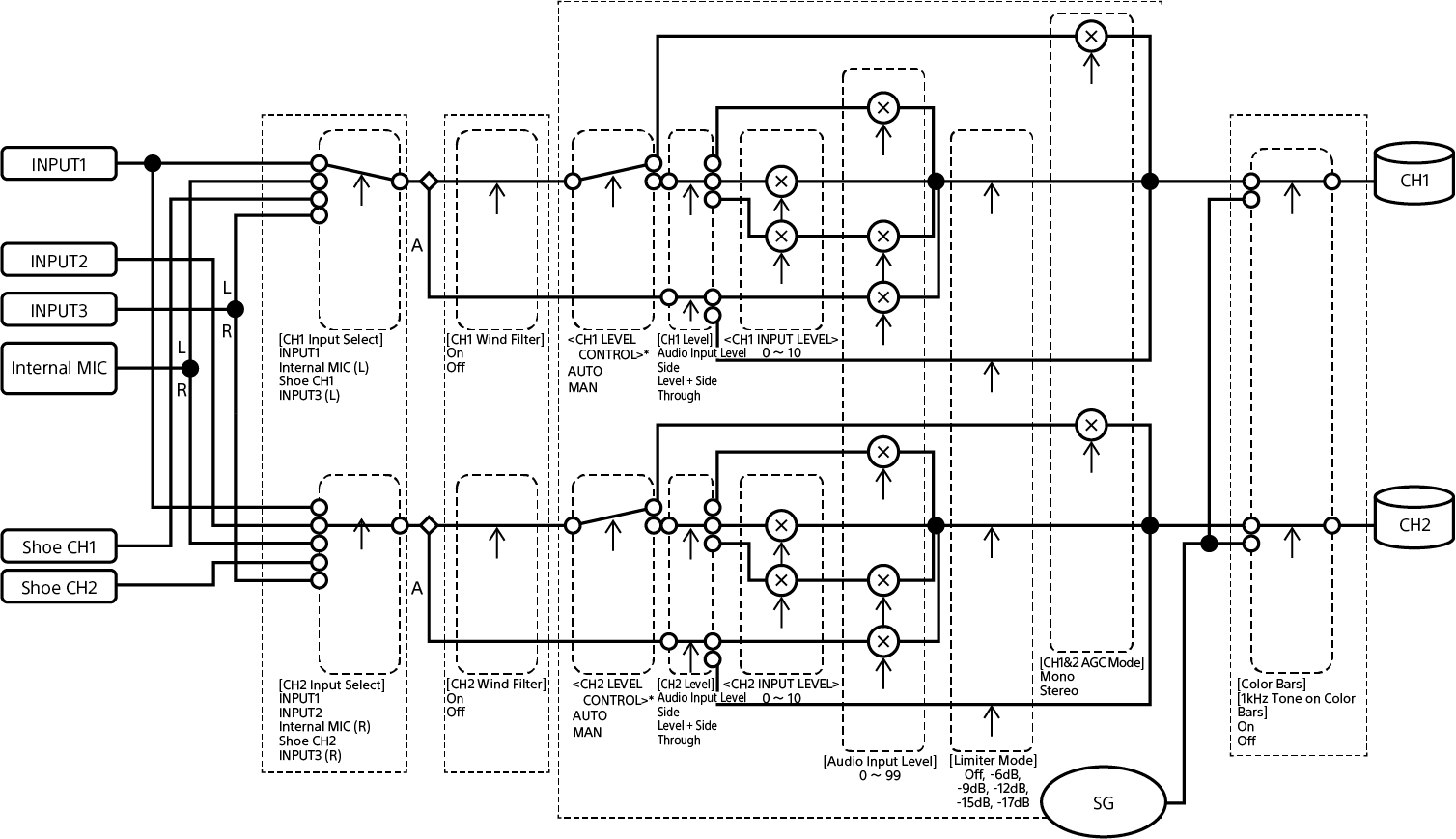

[Audio Input] (CH1&CH2)
A: Med XLR-adapter
* Ställ in med [Audio Input] – [CH1 Level Control] till [CH4 Level Control] på statusskärmen [Audio] för ljudingång från en XLR-adapter.

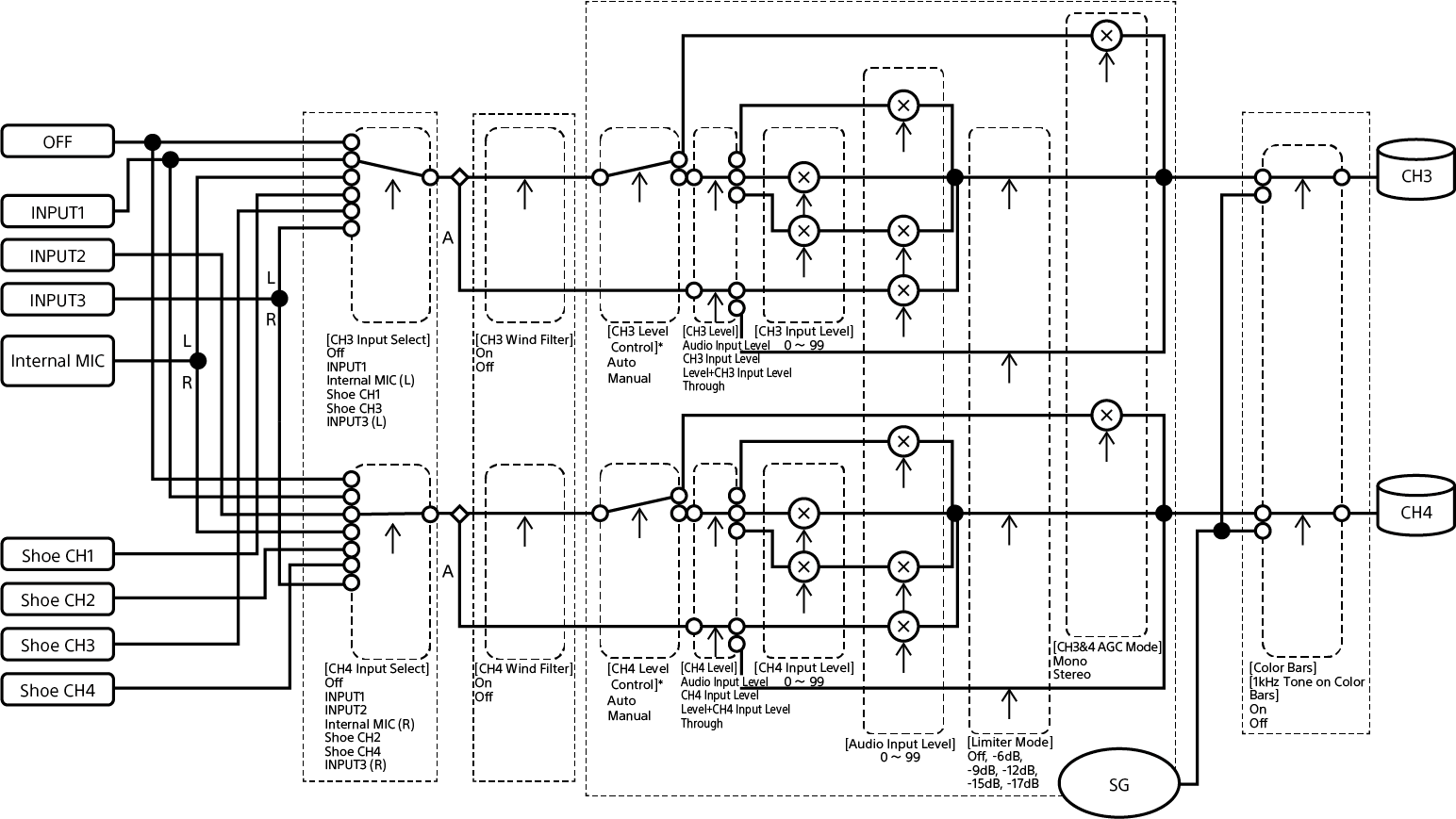

[Audio Input] (CH3&CH4)
A: Med XLR-adapter
* Ställ in med [Audio Input] – [CH1 Level Control] till [CH4 Level Control] på statusskärmen [Audio] för ljudingång från en XLR-adapter.
