Parts and controls

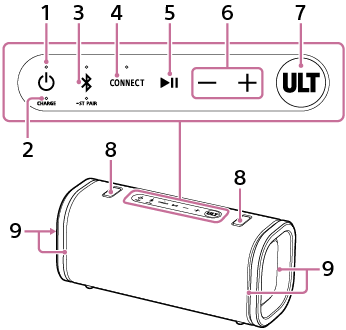

Illustration of the wireless speaker viewed from the front. On the top surface, 1, 2, 3, 4, 5, 6, and 7 are arranged in order. To the left of 1 and to the right of 7, there is an 8 on each side. On the right and left sides of the speaker, there is a 9.

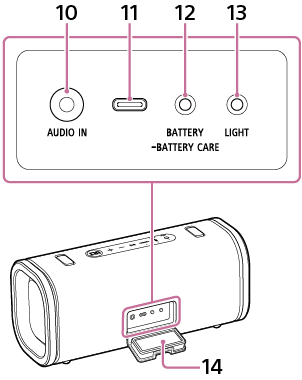

Illustration of the wireless speaker viewed from its rear side. 14 is located in the middle of the rear surface, with 10, 11, 12, and 13 arranged from left to right behind it.

  1. (power) button with indicator

  2. CHARGE indicator

  3. (BLUETOOTH) button with indicator/ST PAIR (Stereo Pair) button with indicator

  4. CONNECT button with indicator

  5. (play) button*1

  6. –/+ (volume) buttons

  7. ULT button

  8. Storage caps

  9. Lights

  10. AUDIO IN jack (Φ 3.5 mm)*2

  11. DC IN/OUT port (USB Type-C®)*3

  12. BATTERY button/BATTERY CARE button

  13. LIGHT button

  14. Cap


*1 Pressing and holding the(play) button on the speaker for about 5 seconds makes the speaker play the music track stored for demonstration purposes. To disable this feature, press the(play) button once again.

*2 Plugging an audio cable disables audio output from the BLUETOOTH device.

*3 This port is not compatible with music playback.

Note

  • The port and jacks on the speaker are not designed for waterproof and dustproof. Do not use the speaker in places where the speaker is likely to have water splashed on it. When you are finished with using the speaker, be sure to securely close the cap.
