Connecting the headphone cable

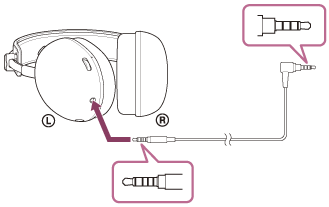

  1. Connect the supplied headphone cable to the headphone cable input jack.

    Be sure to connect the 5-pole straight plug to the headset side.

Note

  • Use the supplied headphone cable only.
  • When plugging or unplugging the cable, hold the plug and plug it straight into the headphone cable input jack. Pulling on the cable or applying excessive force may cause it to break.
  • Make sure the plug is fully inserted. If the plug is not fully inserted, sound may not be heard. Also, the microphone may not be usable.
