Wearing the headset

  1. Connect the boom microphone and the headphone cable.

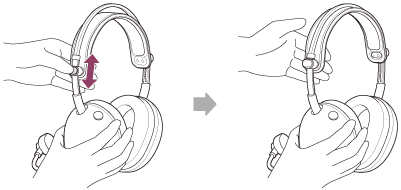

  2. Adjust the slider position.

    Move the slider up and down to adjust the headband height.

    The slider part moves when the slider knob is pressed. The slider is locked when your finger is released from the slider knob.

  3. Put the headset units into your ears.

    Put the headset unit with the L-mark on your left ear and the headset unit with the R-mark on your right ear.

    A boom microphone (A) is attached to the left unit.


    Illustration indicating the location of A

  4. Adjust the position of the boom microphone so that it is near your mouth.

    The microphone should be adjusted at the same height as the chin and about 1 to 4 fingers away from the mouth (up to 35 mm (1.38 in)).

Hint

  • If you are concerned about breathing noise, make sure the windscreen is installed and position the microphone away from your mouth.
    It is recommended to test the microphone once with “INZONE Hub” or your app.

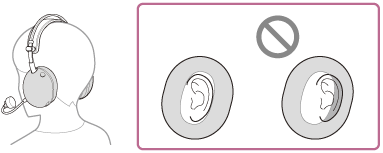

  • If the headset is not worn properly on your ears, it may cause ear pain. Be careful not to let the cushion part of the earpads apply pressure on your ears.

Note

  • Be careful not to hit your eyes with the boom microphone when putting it on, taking it off or using the headset.
