Parts and controls

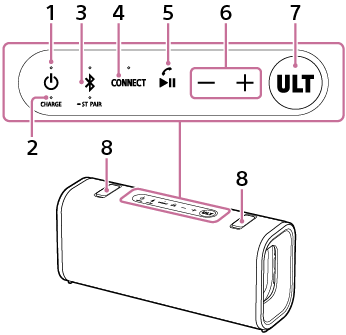

Illustration of the wireless speaker viewed from the front. On the top surface, 1, 2, 3, 4, 5, 6, and 7 are arranged in order. To the left of 1 and to the right of 7, there is an 8 on each side.

Illustration of the wireless speaker viewed from its rear side. There is 12 between 7 and 8 on the top surface. 11 is located in the middle of the rear surface, with 9 and 10 arranged from left to right behind it.

  1. power button with indicator

  2. CHARGE indicator

  3. BLUETOOTH button with indicator/ST PAIR (Stereo Pair) button with indicator

  4. CONNECT button with indicator

  5. playback button/call button (*1)

  6. volume buttons

  7. ULT button

  8. Storage caps

  9. DC IN/OUT port (USB Type-C®) (*2)

  10. BATTERY button/BATTERY CARE button

  11. Cap

  12. Microphone


(*1) Pressing and holding the playback button on the speaker for about 5 seconds makes the speaker play the music track stored for demonstration purposes. To disable this feature, press the playback button on the speaker once again. When the speaker is connected with a smartphone or mobile phone with HFP or HSP, this feature is disabled.

(*2) This port is not compatible with music playback.

Note

  • The port on the speaker is not designed for waterproof and dustproof. Do not use the speaker in places where the speaker is likely to have water splashed on it. When you are finished with using the speaker, be sure to securely close the cap.
