Using the shoulder strap

It is recommended that you attach the supplied shoulder strap to the speaker in advance and carry it with the strap.

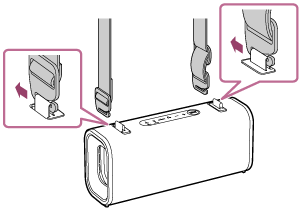

Attaching the shoulder strap

  1. Hook your finger on the tab of the storage cap on the speaker and lift it up.

  2. Rotate the storage cap on the left side clockwise as shown in the illustration. While pinching and lifting the attachment loop with your fingers, push the storage cap down.

  3. Rotate the storage cap on the right side counterclockwise as shown in the illustration. While pinching and lifting the attachment loop with your fingers, push the storage cap down.

  4. Pass the hooks of the shoulder strap through the left and right attachment loops.

Removing the shoulder strap

  1. Remove the hooks of the shoulder strap from the attachment loops on the speaker.

    To make it easier to remove the hook, pinch and lift the attachment loop with your fingers, and then tilt the hook.

  2. Hook your finger on the tab of the storage cap on the left side and lift it up. Rotate the storage cap counterclockwise as shown in the illustration and push it down.

  3. Hook your finger on the tab of the storage cap on the right side and lift it up. Rotate the storage cap clockwise as shown in the illustration and push it down.

Note

  • Do not use any strap other than the supplied shoulder strap.

  • When using the shoulder strap, note the following:

    • Be aware that the shoulder strap may catch on surrounding objects. This may cause it to tighten around your neck.

    • Do not engage in strenuous exercise.

    • Wear the shoulder strap diagonally across your body while carrying the speaker. Otherwise, you may accidentally drop the speaker.

    • If the hook of the shoulder strap is not fully passed through the attachment loop, the speaker may fall.
