Location and function of parts

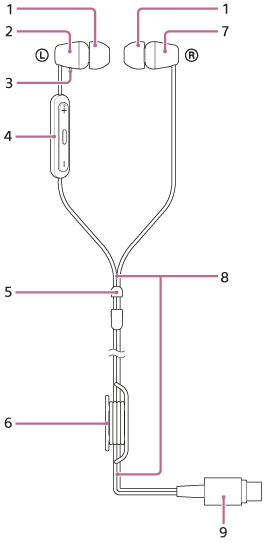

The left and right units (2,7) have 1 attached, and the left unit has 3. 8 is connected to both left and right units which have 5 and 9, and 6 can be attached. The left unit has 4, 11 in the middle of 4, 10 on both sides, and 12 on the back.

  1. Earbud tips (left, right)

  2. Left unit
    There is an mark on the left unit.

  3. Tactile dot
    There is a tactile dot on the left unit.

  4. Remote control component

  5. Slider

    You can adjust the length of the left and right headphone cables with the slider.

  6. Cable adjuster

    You can wind the headphone cable up to 50 cm (19.69 in). Do not wind the plug and the split part of the cable around the cable adjuster.

  7. Right unit
    There is an mark on the right unit.

  8. Headphone cable

  9. USB Type-C® plug

  10. Volume button +/–

    There is a tactile dot on the + side.

  11. Multi-function button

  12. Microphone
