COOL mode

This page introduces recommended use to make the cooling/warming section cool (SMART COOL mode).

In the SMART COOL mode, the unit automatically adjusts the temperature of the cooling/warming section according to the following conditions.

  • The temperature around the unit
  • Your movements such as walking or staying still
  • The temperature and humidity data sent from REON POCKET TAG*
  • Your temperature preference

*When the unit is linked to REON POCKET TAG (sold separately or included with the RNPK-P1T) (The models sold may differ depending on the country or region.)

According to the temperature of the cooling/warming section and the conditions above, the unit may automatically increase or reduce the cooling intensity or pause operation.

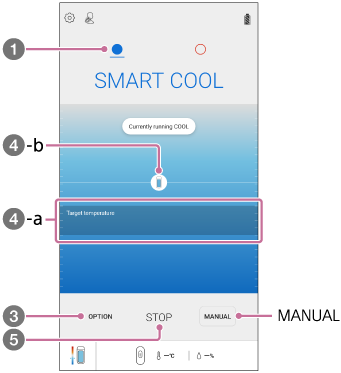

Illustration showing the setting screen of the SMART COOL mode in the “REON POCKET” app

  1. On the “REON POCKET” app screen, tap (COOL icon).
  2. If the above screen is not displayed, tap [START].
  3. Tap [OPTION].
  4. Set the temperature preference.

    Once the setting is made, cooling operation will start. The unit automatically adjusts the temperature of the cooling/warming section.

    • Target temperature (4-a): Indicates the target temperature range of the cooling/warming section (depending on the temperature preference that you have set).
    • Unit icon (4-b): Indicates the current temperature of the cooling/warming section. The circle around the unit icon indicates the intensity of cooling. When the unit automatically pauses cooling operation, the icon becomes translucent.
  5. To stop cooling, tap [STOP].

Using in the MANUAL COOL mode

In the MANUAL COOL mode, the cooling strength is kept at the selected temperature level.

Tap [MANUAL], and then tap the desired temperature level.

The temperature level changes as follows.

[1] (low) → [2] → [3] → [4] → [5] (strong)

Note

  • When the following abnormalities are detected, the cooling operation automatically stops (the mode LED flashes in purple for about 8 seconds).
    • The temperature inside the unit has become extremely high.
    • The temperature of the cooling/warming section has become extremely low.
    • The fan inside the unit is not working properly.
    For details, refer to “ When the mode LED flashes in purple .”

Hint

  • The exhaust volume of the fan is automatically controlled according to the temperature inside the unit.
