System Configuration Examples
This topic shows a system configuration example for live streaming using XDCAM air, and a system configuration example for sending shooting plans generated in a Newsroom Computer System (NRCS) to a camcorder.
Live streaming operation
This is a system configuration that receives streaming video using a PWS-100RX1/110RX1/110RX1A, where the connection is managed by the XDCAM air service.
Note
- A Live license is required to use the streaming function.
- An XDCAM pocket license is required to use XDCAM pocket.
Streaming to multiple stations (multi point distribution)

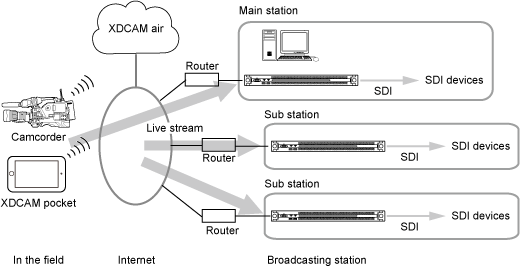

This is a system configuration for streaming to multiple receiving stations. You can stream by specifying a station as the main station for streaming and other sub stations can then join the stream.
Note
- A Live license is required to use the streaming function.
- An XDCAM pocket license is required to use XDCAM pocket.
NRCS operation
This is a system configuration that sends shooting plans received from a Newsroom Computer System to a camcorder in the field.
Note
- For streaming transmission, a camcorder with a CBK-WA100/101 Wireless Adapter attached or a camcorder with wireless function is required.
- A Metadata license is required to use the planning function.
Asset management

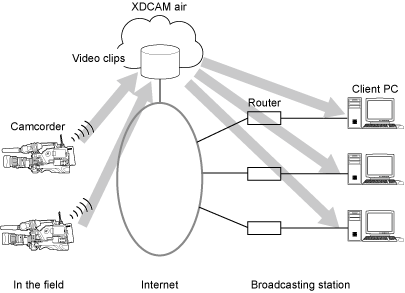

This is a system configuration for managing and sharing video clips uploaded automatically from a camcorder as assets.
Note
- A CMS license is required to use the asset management function.
Intercom operation

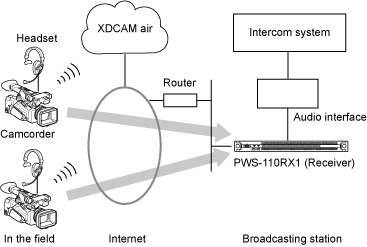

This is a system configuration in which operation of the internal intercom of the broadcast station and XDCAM air are used in conjunction when using a camcorder that has an intercom function.
