Location and function of parts

Headset

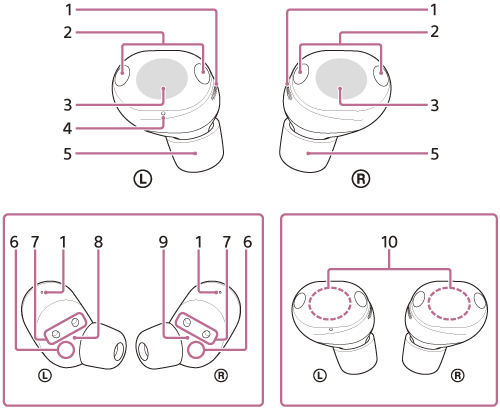

3 is the flat part of the left and right headset units. 10 is built into each headset unit. 1 and 2 are located near 3. 6, 7, 8, and 9 can be seen when the headset is placed on a surface with the earbud tips (5) pointed towards you. 4 is on the left headset unit.

  1. Air holes (left, right)

  2. Microphones (left, right)

    Captures the sound of your voice during phone calls or in the Speak-to-Chat mode and picks up noise when using the noise canceling function or the Ambient Sound Mode.

  3. Touch sensors (left, right)

  4. Tactile dot

    There is a tactile dot on the left-side headset unit.

  5. Earbud tips (left, right)

  6. IR sensors (left, right)

  7. Charging ports (left, right)

  8. (left) mark

  9. (right) mark

  10. Built-in antennas (left, right)

    A Bluetooth antenna is built into both left and right units of the headset.


Charging case

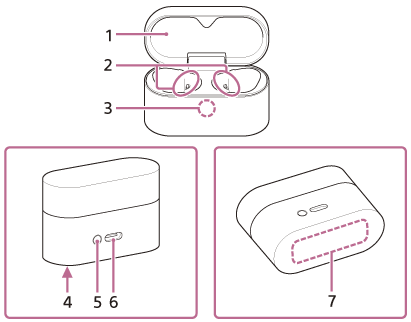

3 can be seen closest to you when the charging case lid (1) is open and placed on a surface facing you. 2 is located inside the charging case. 5 and 6 are located on the back of the charging case. 4 and 7 are located on the bottom of the charging case.

  1. Charging case lid

  2. Charging ports (left, right)

  3. Indicator (blue/orange/green)

    Indicates the remaining battery charge of the headset units and charging case, the charging status, or the status of the pairing mode.

  4. Serial number

    Located on the bottom of the charging case.

  5. Pairing/reset/initialize button

    Used when entering pairing mode, resetting or initializing the headset.

  6. USB Type-C port

    Charge both the headset and the charging case using one of the following methods with the supplied USB Type-C cable.

    • Connect the charging case to a computer
    • Connect the charging case to an AC outlet using a commercially available USB AC adaptor

  7. Contact surface for the Qi charging
