Part names

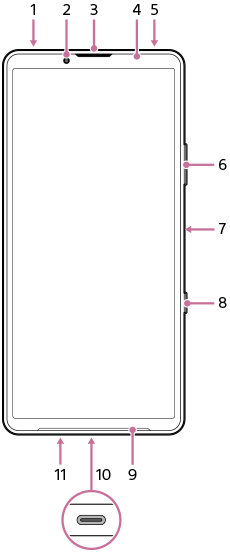

Diagram of front view showing each part by number. Upper part, from left to right, 1 to 5. Right side, from top to bottom, 6 to 8. Bottom side, from right to left, 9 to 11.

Diagram of rear view showing each part by number. Upper left part, 12 to 14, and 19. Upper right area, 15, 16, and 18. Right side, 17. Bottom area, 20.

  1. 3.5 mm audio jack
  2. Front camera
  3. Ear speaker/Second loudspeaker
  4. Proximity/Light sensor
  5. Second microphone
  6. Volume/Zoom button
  7. Power button/Fingerprint sensor
  8. Shutter button

    Hint

    • You can assign a different action to the shutter button when not using the Camera app. To turn the setting on or off, find and tap as follows, and then tap the switch for the desired setting.

      • Taking a screenshot by pressing the shutter button

        [Settings] > [System] > [Gestures] > [Shutter button] > [Take a screenshot]

      • Launching the Camera app by long-pressing the shutter button

        [Settings] > [System] > [Gestures] > [Shutter button] > [Launch Camera app]

  9. Main loudspeaker
  10. USB port/Charger

    You can also access the internet via a LAN cable by using a commercially available USB-LAN adapter.

    Note

    • Some USB-LAN adapters may not work properly.
  11. Main microphone
  12. Wi-Fi/Bluetooth antenna
  13. Cellular antenna
  14. Light/Flash LED
  15. Cellular/Wi-Fi/Bluetooth/GPS antenna
  16. Cellular antenna
  17. SIM card/microSD card tray
  18. NFC detection area
  19. Main camera
  20. Cellular antenna
