Location and function of parts

Headset

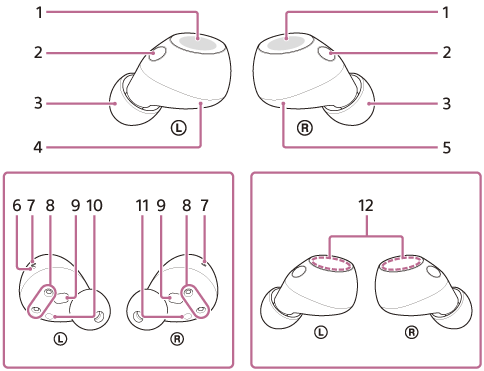

1 is the flat part of the left and right headset units. 12 is built into each headset unit. 2 and 7 are located near 1. 8, 9, 10, and 11 can be seen when the headset is placed on a surface with the earbud tips (3) pointed towards you. 6 is on the left headset unit.

  1. Touch sensors (left, right)

  2. Microphones (left, right)
    Pick up the sound of your voice during a phone call and pick up ambient sounds when the noise canceling function or Ambient Sound Mode is being used.

  3. Earbud tips (left, right)

  4. Left unit of the headset

  5. Right unit of the headset

  6. Tactile dot
    There is a tactile dot on the left headset unit.

  7. Air holes (left, right)

  8. Charging ports (left, right)

  9. IR sensors (left, right)

  10. (left) mark

  11. (right) mark

  12. Built-in antennas (left, right)
    A Bluetooth antenna is built into each left or right unit of the headset.


Charging case

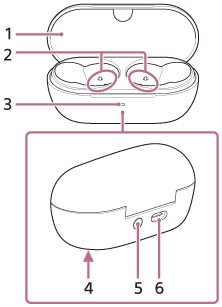

3 can be seen when the charging case lid (1) is open and placed on a surface facing you. 2 is located inside the charging case, and 5 and 6 are located on the back of the charging case. 4 is located on the bottom of the charging case.

  1. Lid

  2. Charging ports (left, right)

  3. Indicator (green/orange/blue)

    Indicates the remaining battery hours of the headset units and charging case, the charging status, or the status of the pairing mode.

  4. Serial number

    Located on the bottom of the charging case.

  5. Pairing/reset/initialize button

    Used when entering pairing mode, resetting or initializing the headset.

  6. USB Type-C port

    Using the supplied USB Type-C cable, connect the charging case to a computer or to an AC outlet via a commercially available USB AC adaptor to simultaneously charge both the headset and the charging case.
