INZONE H9 II | Help Guide | Top

Model: YY2987

Find out how to adjust headband size

Move the slider up and down while pressing the slider knobs on either side of the headband.

Release your finger from the slider knob at the desired height to fix the slider in place.

The height of the headband can be adjusted.

Let’s start to use

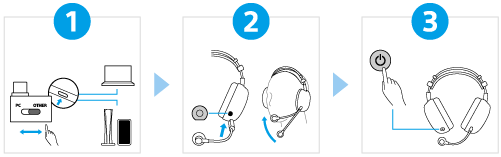

Connecting the USB transceiver properly
Set the slide switch of the USB transceiver correctly according to the connected device, and then insert the USB transceiver into the USB port.
When connected to a computer: Set the slide switch to “PC”
When connected to other devices: Set the slide switch to “OTHER”

Put the headset on your ears and adjust the position of the boom microphone
Remove the boom microphone from the accessory box and insert it into the boom microphone input jack on the headset body. Make sure that you insert the plug until it clicks.
Also, adjust the position of the microphone so that the microphone part is at the mouth when the headset is worn.

Turning on the headset
Press and hold the power button for about 2 seconds or more until the indicator flashes in white twice. The headset is turned on.
When connected to a computer, select the headset as the audio device.
Audio output device such as games
[INZONE H9 II - Game]
Audio input/output device such as voice chat
[INZONE H9 II - Chat]

To use all functions and improved performances

PC software “INZONE Hub”

Use the latest version.

For download and further information on “INZONE Hub”, refer to the following URL.

https://www.sony.net/inzonehub-support

Smartphone app “Sound Connect”

You can also use convenient headset functions on your smartphone.

Download the “Sound Connect” app and get the most out of what you have.

To prevent burning or malfunction due to getting wet

The headset is not waterproof.

If the headset is charged while it is wet with rain or sweat, etc., this can result in burnout or malfunction.

Related information

Charging the headset
