Location and function of parts

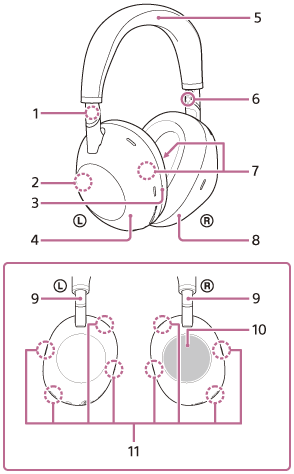

There are 9 on each side of the arched 5 as well as 1 and 6 on the inside of 9. The left unit (4) has 3 as well as 12, 13, 14, and 15 on the sides. The right unit (8) has 10 on the flat surface, 17 and 18 on the sides, and 16 on the inside of the earpad. The left unit has 2, 7, and 11 built in, and the right unit has 7 and 11 built in.

  1. (left) mark

  2. Built-in antenna

    A Bluetooth antenna is built into the headset.

  3. Tactile dot

    The left unit has a tactile dot at the edge of the housing.

  4. Left unit

  5. Headband

  6. (right) mark

  7. Noise canceling function microphones (internal) (left, right)

    Pick up the sound of the noise when the noise canceling function is in use.

  8. Right unit

  9. Sliders (left, right)

    Slide to adjust the length of the headband.

  10. Touch sensor control panel

    Remotely controls music playback of the connected Bluetooth device or performs other operations using touch operation.

  11. Noise canceling function microphones (external) and voice pickup microphones (left, right)

    Pick up the sound of the noise when the noise canceling function is in use and the wearer’s voice during a phone call or when the Speak-to-Chat mode is in use.

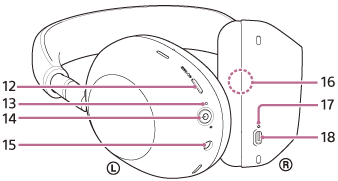

  12. NC/AMB (noise canceling/Ambient Sound Mode) button

  13. Indicator (orange/blue)

    Lights up in orange or blue to indicate the battery or communications status of the headset.

  14. (power) button / (Bluetooth) button

  15. Headphone cable input jack

    Connect a music player, etc. using the supplied headphone cable. Make sure that you insert the cable until it clicks. If the plug is not connected correctly, you may not hear the sound properly.

  16. Serial number

    Located inside the right unit.

    See “To check serial numbers, safety marks, etc.” below.

  17. Charging indicator (orange)

    Lights up in orange while charging.

  18. USB Type-C port

    Connect the headset to a computer, or to an AC outlet via a commercially available USB AC adaptor, with the supplied USB Type-C cable to charge the headset.


To check serial numbers, safety marks, etc.

  • Make sure the headset is turned off and the USB cable is not connected.
  • Remove the earpad from the right unit by pulling it straight off the housing. Avoid pulling it off at an angle.
    The serial number and safety marks, etc. are located on the lower right corner of the right unit.

  • Attach the removed earpad to the right unit.
    Make sure to firmly insert the five tabs into the unit until you hear a click.

Note

  • Do not remove the earpad unless necessary.
  • Before removing the earpad, make sure the headset is turned off and the USB cable is not connected.
  • Do not remove the earpad in the presence of iron sand or other metal objects. Iron sand or other metal objects may adhere to the magnet inside the headset, causing the headset to malfunction.
  • Any defects caused by failure to follow the above precautions are not covered by the product warranty.
