Wearing the headset

  1. Check the left and right units of the headset.

    On the left unit, there are the (left) mark, a tactile dot (A), the (power) button, and the NC/AMB (noise canceling/Ambient Sound Mode) button.
    On the right unit, there is the (right) mark. There is no tactile dot or button.

    Illustration indicating the location of A

  2. Extend the slider.

    Extend the slider to its full length before putting on the headset.

  3. Put on the headset.

    Put on the headset with the earpads fitting snugly over your ears.

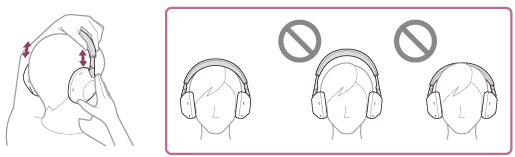

  4. Adjust the length of the slider.

    Adjust the slider to a length where the headband touches the top of your head.

  5. Adjust the orientation of the units.

    Adjust the orientation of the left and right units so that the earpads fit snugly all around your ears.

    If you put on the headset without adjusting the slider, the headset may not be positioned properly on your head, resulting in discomfort or a weak noise canceling effect.
    The wearing detection function of the headset may also not work properly and cause music playback to stop automatically or activate the automatic power off function (the battery saving function) to automatically turn off the headset.

When attaching and removing the headset

In the factory settings, the built-in proximity sensor in the left unit detects when the headset is worn or removed from your ears, and the headset automatically controls the disabling of the touch sensor control panel’s operation, powering off the headset, pausing music playback, etc.


When the headset is worn

  • You can use the touch sensor control panel of the headset to play music, make and receive calls, etc.

When the headset is removed

  • When you listen to music while wearing the headset on your ears, the headset will pause music playback automatically if the headset is removed. When the headset is worn again, the headset resumes music playback.
  • In order to save the battery, the headset will automatically turn off after 15 minutes of not being worn.
  • In order to prevent the headset from reacting incorrectly, music playback, making and receiving calls, and other operations cannot be performed when the headset is removed, even if you tap the touch sensor control panel.
    The noise canceling function cannot be used even if you press the NC/AMB (noise canceling/Ambient Sound Mode) button.

About the instruction manual video

Watch the video to find out how to put the headset into your ears.

No audio explanation is available.

For models of countries and regions excluding Chinese mainland:

https://rd1.sony.net/help/mdr/mov0090/h_zz/

For models of Chinese mainland:

https://rd1.sony.net/help/mdr/mov0090/zh-cn/

Hint

  • By using the “Sony | Sound Connect” app, you can change the settings of the wearing detection automatic music playback pause and resume function and the wearing detection automatic power off function (the battery saving function).

Note

  • If you put on the headset without adjusting the slider, the headset may not be positioned properly on your head, resulting in discomfort or a weak noise canceling effect.
    The wearing detection function of the headset may also not work properly and cause music playback to stop automatically or activate the automatic power off function (the battery saving function) to automatically turn off the headset.
  • In the following cases, wearing detection may react incorrectly. When you are not using the headset, turn off the headset.
    • With the headset around your neck, your chin goes into the housing

    • Your hand is placed inside the earpad of the left unit.

    • The headset is inside a container such as a bag.

    • The headset is hanging on the edge of something such as a bag.

    • The headset is on a surface such as a desk.

  • When you wear the headset with your face up or down as shown below, or when you wear the headset upside down, wearing detection may not work properly, and the touch sensor control panel and NC/AMB (noise canceling/Ambient Sound Mode) button may not be available for operation. Wear the headset correctly while facing forward, or press the (power) button briefly.
    • Wearing the headset while lying down or with your face up

    • Wearing the headset with your face down

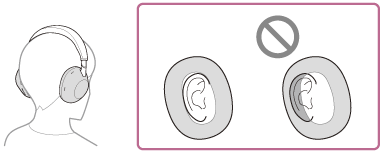

  • When you wear the headset over a cap, cloth, a scarf, hair, etc., wearing detection may not work properly, and the touch sensor control panel may not be available for operation. Wear the headset so that your ears are inside the earpads.
  • When the supplied headphone cable is connected to the headset, wearing detection does not work.
  • The wearing detection automatic music playback pause and resume function is only available when connected via Bluetooth connection.
  • The connected device or playback application you are using may not support the wearing detection automatic music playback pause and resume function.
  • External force beyond the range of normal use, such as turning the unit's rotary axis or other moving parts to the opposite side of the normal direction or dropping the headset, may cause damage. The warranty does not cover malfunctions caused by damage due to improper handling.
