Preparation Step 6: Installing the sub-cartridges in the cartridge
- Place the cartridge on a flat surface.

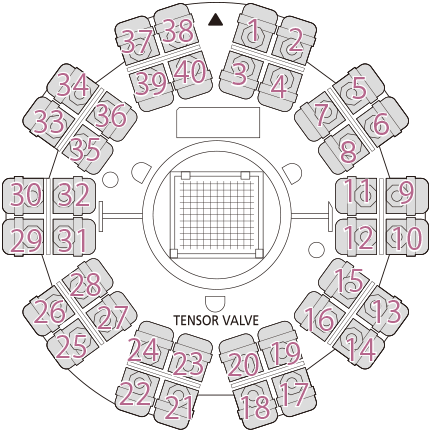

- Check the install position of the sub-cartridge.
Install the sub-cartridge in the position indicated by the number on the sticker affixed to the sub-cartridge.

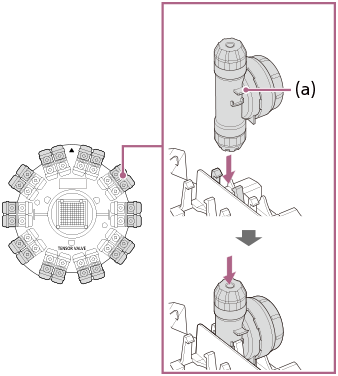

- Install the sub-cartridge in the cartridge.
Orient the sub-cartridge so that the vane part is on the upper side and install it directly into the cartridge.
(a) Vane
