Creating a [Preset (multiple)] process

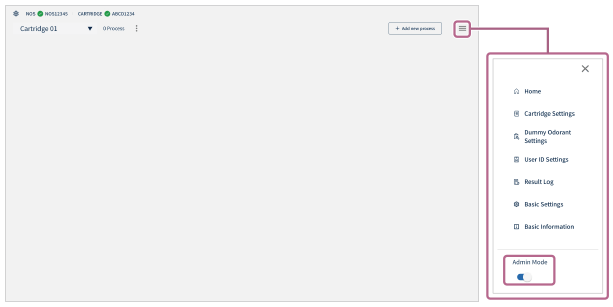

  1. Tap (Settings) in the upper right part of the “Scent Canvas” app Home screen followed by the [Admin Mode] (On/Off) switch to turn Administrator Mode on.

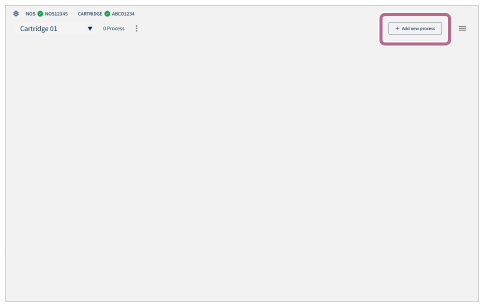

  2. Tap [ Add new process] in the upper right part of the screen.

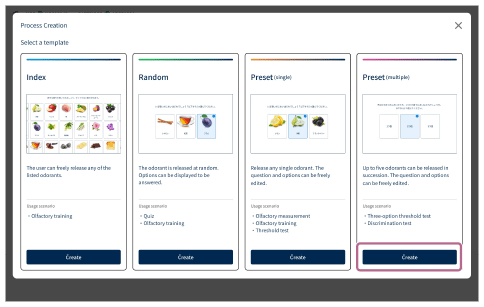

  3. Tap [Create] in the [Preset (multiple)] section of the [Process Creation] screen.

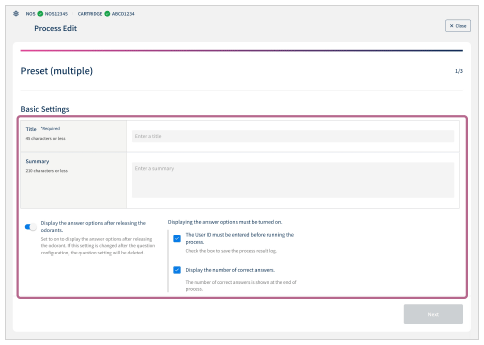

  4. Configure the basic process settings.

    • Title (*Required): Enter the process title (maximum of 45 characters).
    • Summary: Enter the process description (maximum of 210 characters).
    • Display the answer options after releasing the odorants.: Tap the (On/Off) switch to set. If turned on, the choices are displayed, and if turned off, it moves to the next question.
    • The User ID must be entered before running the process.: This option can be set if [Display the answer options after releasing the odorants.] is turned on. When the box is checked, ID entry is required before process execution, and the process result log can be verified after answering.
    • Display the number of correct answers.: This option can be set if [Display the answer options after releasing the odorants.] is turned on. When the box is checked, the number of correct answers is displayed.

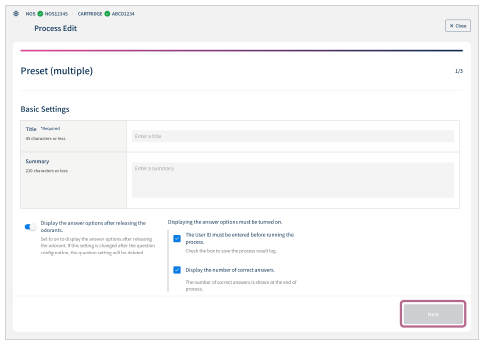

  5. Tap [Next].

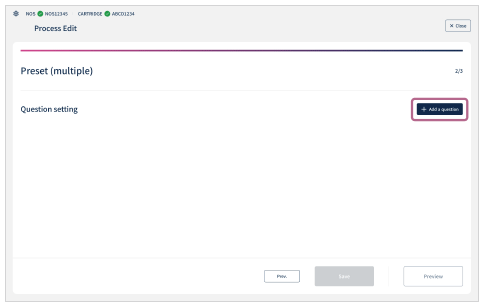

  6. Tap [ Add a question].

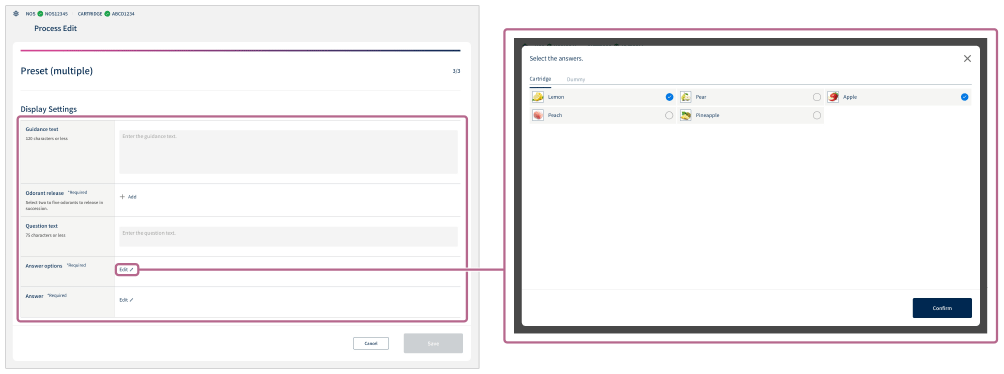

  7. Configure the process question settings.

    • Guidance text: Enter the operational guidance and other text (maximum of 120 characters).
    • Odorant release (*Required): Tap [ Add] to add one odorant at a time. Tap (Delete) when you wish to delete an added odorant. Set two or more candidates (maximum of 5 can be set).
    • Question text: Enter the question text (maximum of 75 characters).
    • Answer options (*Required): Tap [Edit] to display the choices screen for the answer. Switch between [Cartridge]/[Dummy] on the choices screen for the answer to set the choice candidates (maximum of 8).
      [Dummy] can be set as answer choices that are not the actual odorants. To set dummy odorants, tap [Dummy Odorant Settings] under (Settings) in advance.
    • Answer (*Required): Tap [Edit] to choose the odorant as the answer. Set one or more items as the answers (maximum of 8).

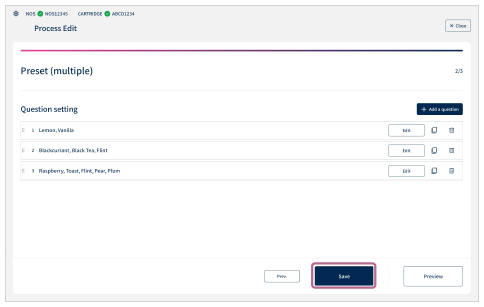

  8. Tap [Save] to save the created content.


To change the order of the added questions or duplicate/delete questions

Long press and then drag and drop (Change list order) on the left end of the [Question Setting] list to change the order of the questions.

Tap (Duplicate) or (Delete) on the right end of the [Question Setting] list to duplicate or delete questions.


To stop the configuration in the middle

Tap [ Close] in the upper right part of the screen.

Please note that the created settings are not saved.


To check the operation of the created process

Tap [Preview] on the last page of the settings screen.

You can use the preview function to check the process operation and the screen transition. After checking the operation, tap the [] (Return) button in the upper left part of the screen to return to the settings screen and tap [Save] if there are no problems with the settings.
Odorants are not released in the preview function.
