Camera Menu Configuration

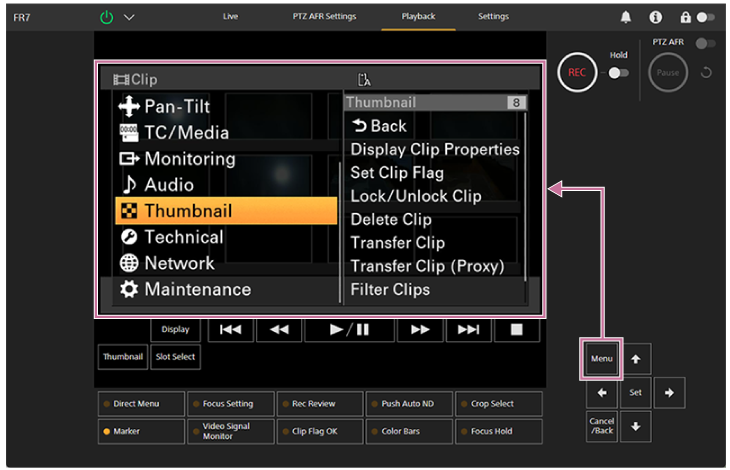

When the [Menu] button in the GUI control panel or the MENU button on the infrared remote control is pressed, the camera menu for configuring the various required settings for shooting and playback is displayed in the camera image panel.
The menu comprises the following menus.
Menu configuration
[User] menu
Contains menu items configured by the user.
Can be edited using [Edit User Menu].
[Edit User] menu
Contains menu items for editing the [User] menu.
[Shooting] menu
Contains settings related to shooting.
[Project] menu
Contains basic project settings.
[Paint/Look] menu
Contains settings related to image quality.
[Pan-Tilt] menu
Contains settings related to the pan/tilt.
[TC/Media] menu
Contains settings related to timecodes and recording media.
[Monitoring] menu
Contains settings related to video output and the screen display.
[Audio] menu
Contains settings related to audio.
[Thumbnail] menu
Contains settings related to thumbnail display.
[Technical] menu
Contains settings for technical items.
[Network] menu
Contains settings related to networks.
[Maintenance] menu
Contains devices settings, such as the clock and language.
Camera menu configuration and hierarchy
| Level 1 | Level 2 |
|---|---|
| User (Factory settings) |
Base Setting |
| Focus | |
| S&Q Motion | |
| LUT On/Off | |
| Simul Rec | |
| Proxy Rec | |
| Interval Rec | |
| Picture Cache Rec | |
| Assignable Button | |
| Scene File | |
| Base Look | |
| P/T Acceleration | |
| Clip Name Format | |
| Format Media | |
| Video Signal Monitor | |
| Marker | |
| Zoom | |
| Lens | |
| Edit User Menu | |
| Shooting | ISO/Gain/EI |
| ND Filter | |
| Shutter | |
| Iris | |
| Auto Exposure | |
| White | |
| White Setting | |
| Offset White | |
| Focus | |
| S&Q Motion | |
| LUT On/Off | |
| Noise Suppression | |
| Flicker Reduce | |
| SteadyShot | |
| Project | Base Setting |
| Rec Format | |
| Cine EI/Flex.ISO Set | |
| Simul Rec | |
| Proxy Rec | |
| Interval Rec | |
| Picture Cache Rec | |
| SDI/HDMI Rec Control | |
| Assignable Button | |
| Paint/Look | Scene File |
| Base Look | |
| Reset Paint Settings | |
| Black | |
| Knee | |
| Detail | |
| Matrix | |
| Multi Matrix | |
| Pan-Tilt | P/T Acceleration |
| TC/Media | Timecode |
| TC Display | |
| Users Bit | |
| HDMI TC Out | |
| Clip Name Format | |
| Update Media | |
| Format Media | |
| Media Life | |
| Monitoring | Output Format |
| Display On/Off | |
| Video Signal Monitor | |
| Marker | |
| Audio | Audio Input |
| Audio Output | |
| Thumbnail | Display Clip Properties |
| Set Clip Flag | |
| Lock/Unlock Clip | |
| Delete Clip | |
| Transfer Clip | |
| Transfer Clip (Proxy) | |
| Filter Clips | |
| Customize View | |
| Technical | Color Bars |
| Genlock | |
| Tally | |
| Rec Review | |
| Zoom | |
| Lens | |
| APR | |
| Network | Wired LAN |
| File Transfer | |
| Maintenance | Language |
| Clock Set | |
| Hours Meter |
