Changing the Transition Time (Pan-Tilt/Zoom) When Restoring a Preset Position

You can change the transition time (pan/tilt operation, zoom operation) when restoring a saved preset position.

  1. Set [Pan-Tilt] > [P/T Preset] > [Pan-Tilt Speed Setting Way] to [Separate] in the web menu.
  2. Set the PTZ assist mode to [Pos.] in the drop-down list at the top of the preset position control panel.
  3. Press the image for the preset position for which you want to change the transition time.

    The (Preset position menu) button appears at the top right of the image.

  4. Press the (Preset position menu) button and select [Edit…] from the displayed menu.

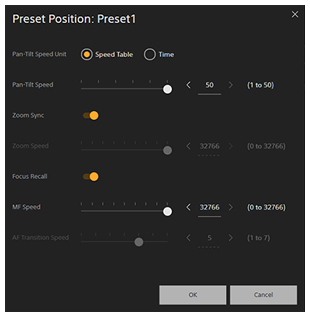

    The setup screen for the selected preset position appears.

  5. Select [Pan-Tilt Speed Unit] > [Time] and set the transition times (Pan-Tilt/Zoom) you want to change using the sliders or enter values directly and press the [OK] button.

    The next time a saved position is restored the camera will move with the configured time.

Hint

  • When [Pan-Tilt] > [P/T Preset] > [Pan-Tilt Speed Setting Way] is set to [Common], all positions will be restored at the set speed using [Pan-Tilt] > [P/T Preset] > [Pan-Tilt Speed for Common].
  • After zoom movement is completed, the camera moves to the saved focus position.
  • After the movement is completed, [AF Transition Speed] returns to its original setting.
  • If [Pan-Tilt] > [P/T Preset] > [Default] > [Zoom Sync] is set to [On] in the web menu, zoom also operates with the specified time.
  • When [Pan-Tilt] > [P/T Preset] > [Pan-Tilt Speed Setting Way] is set to [Common] the transition time configured here is applied.
  • You can set the transition time in 0.5 second increments.
  • When restoring the preset position of a Clear Image Zoom area, the zoom does not operate smoothly (preset position is restored instantaneously).

Note

  • Depending on the type of lens and the ambient temperature, the maximum acceleration and accuracy may differ and the camera may not operate as specified.
  • Depending on the pan/tilt distance, there may be an error in the specified time.
